Part Image

LM75BDP - NXP

Description: Pin-for-pin replacement for industry standard LM75 and LM75A and offers improved temperature resolution of 0.125 C and specification of a single part over power supply range from 2.8 V to 5.5 V  I 2C-bus interface with up to 8 devices on the same bus  Power supply range from 2.8 V to 5.5 V  Temperatures range from 55 C to +125 C

Download LM75BDP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

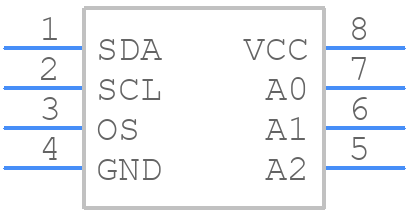

LM75BDP - NXP - PCB symbol
click to zoom
PCB Footprints
LM75BDP - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT505-1
click to zoom
3D Models
LM75BDP - NXP - 3D model - Small Outline Packages - SOT505-1
click to zoom

LM75BDP Details

  • Manufacturer Part Number:

    LM75BDP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    3MM, PLASTIC, TSSOP-8

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7.9

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    8

  • Operating Current-Max:

    5 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Termination Type:

    SOLDER

LM75BDP Frequently Asked Questions (FAQs)

  • The maximum cable length for the I2C bus depends on the system design and the capacitance of the bus. As a general rule, NXP recommends keeping the cable length as short as possible (less than 10 cm) to minimize signal degradation and ensure reliable communication.
  • During power-up, the LM75BDP may enter thermal shutdown if the die temperature is above the thermal shutdown threshold (TSD). To handle this, ensure that the power supply ramps up slowly (e.g., using a soft-start circuit) to allow the device to stabilize before the thermal shutdown threshold is reached.
  • No, the LM75BDP is designed to operate from a 2.7V to 5.5V power supply, but it is not recommended to use it with a 5V power supply. The device's internal voltage regulator is designed to operate at 3.3V, and using a 5V power supply may cause the device to malfunction or reduce its accuracy.
  • The LM75BDP does not require calibration. The device is factory-calibrated, and the temperature sensor is trimmed to provide an accuracy of ±2°C over the operating temperature range. However, if you need to improve the accuracy, you can use the offset register to adjust the temperature reading.
  • The LM75BDP can operate over a temperature range of -40°C to 125°C, but the accuracy of the temperature sensor is specified over a range of -20°C to 100°C. If you need to measure temperatures outside this range, you may need to use an external temperature sensor or a different device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM75BDP Overview

Use the download button to access the LM75BDP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM75B, or try a keyword search, such as Temperature Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
