LM7812K - SEMELAB

LM7812K Details

• Manufacturer Part Number:

  LM7812K

• Pbfree Code:

  No

• Rohs Code:

  No

• Part Life Cycle Code:

  Active

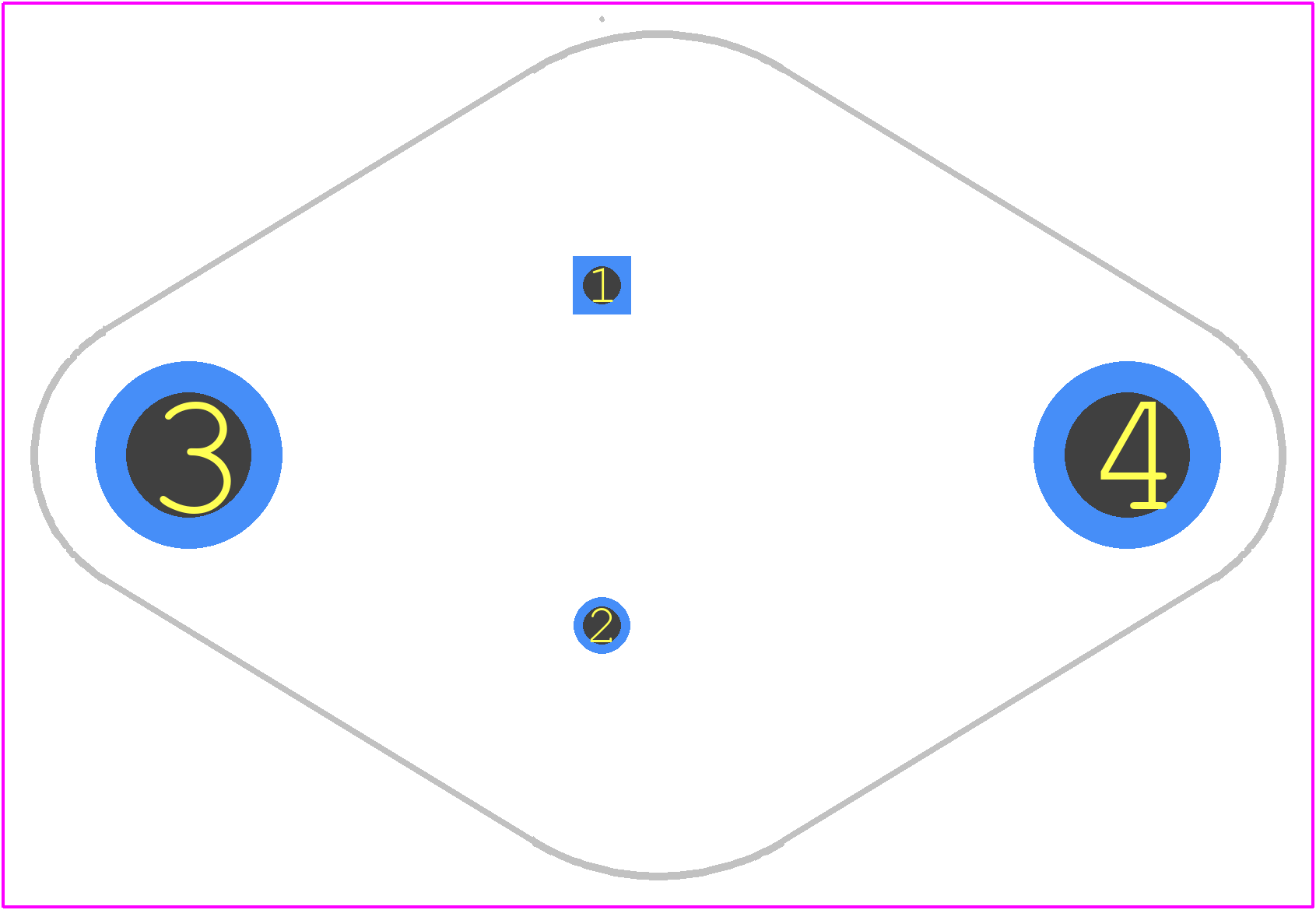

• Part Package Code:

  TO-204AA

• Package Description:

  TO-3,

• Pin Count:

  2

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  TT Electronics Power and Hybrid / Semelab Limited

• YTEOL:

  4.51

• JESD-30 Code:

  O-MBFM-P2

• Number of Functions:

  1

• Number of Terminals:

  2

• Operating Temperature TJ-Max:

  150 °C

• Operating Temperature TJ-Min:

  -55 °C

• Output Current1-Max:

  1.5 A

• Output Voltage1-Max:

  12.48 V

• Output Voltage1-Min:

  11.52 V

• Output Voltage1-Nom:

  12 V

• Package Body Material:

  METAL

• Package Code:

  TO-3

• Package Shape:

  ROUND

• Package Style:

  FLANGE MOUNT

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Qualification Status:

  Not Qualified

• Regulator Type:

  FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR

• Surface Mount:

  NO

• Terminal Form:

  PIN/PEG

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Voltage Tolerance-Max:

  4%
