LMV339DTBR2G - onsemi

Description: Guaranteed 2.7 V and 5.0 V Performance; Input common-mode voltage range extends to ground; Open drain output for Wired-OR applications; Low Quiescent Current: 60 A/channel TYP @ 5.0 V; Low Saturation Voltage 200 mV TYP @ 5.0 V; Propagation Delay 200 ns TYP @ 5.0 V

Download LMV339DTBR2G Model

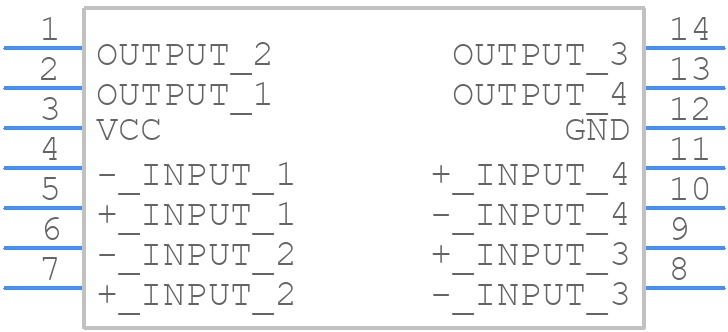

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LMV339DTBR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP−14-
click to zoom
3D Models
LMV339DTBR2G - onsemi  - 3D model - Small Outline Packages - TSSOP−14-
click to zoom

LMV339DTBR2G Details

  • Manufacturer Part Number:

    LMV339DTBR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5.65

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    200 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LMV339DTBR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the LMV339DTBR2G is 2.7V to 5.5V.
  • To ensure stability, it is recommended to use a 10uF ceramic capacitor at the output pin and a 1uF ceramic capacitor at the input pin, and to keep the input and output capacitors as close to the device as possible.
  • The LMV339DTBR2G can sink or source up to 20mA of current.
  • To protect the LMV339DTBR2G from ESD damage, it is recommended to use ESD protection devices such as TVS diodes or ESD arrays, and to follow proper handling and storage procedures.
  • The thermal resistance of the LMV339DTBR2G is 145°C/W (junction-to-ambient) and 55°C/W (junction-to-case).
