Part Image

LMV358DMR2G - onsemi

Description: Operation from 2.7 V to 5.0 V Single-Sided Power Supply; No Output Crossover Distortion; Industrial temperature Range: -40C to +85C; Rail-to-Rail Output; Low Quiescent Current; No Output Phase-Reversal from Overdriven Input

Download LMV358DMR2G Model

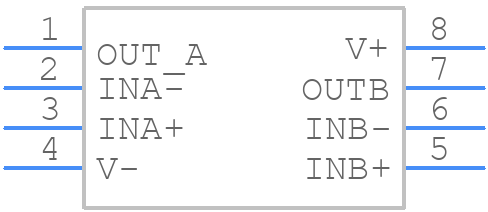

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LMV358DMR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - LMV358DMR2G
click to zoom
3D Models
LMV358DMR2G - onsemi  - 3D model - Small Outline Packages - LMV358DMR2G
click to zoom

LMV358DMR2G Details

  • Manufacturer Part Number:

    LMV358DMR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    Micro 8 lead Surface Mount

  • Pin Count:

    8

  • Manufacturer Package Code:

    846A-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7.17

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Common-mode Reject Ratio-Min:

    50 dB

  • Common-mode Reject Ratio-Nom:

    65 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    1 V/us

  • Supply Current-Max:

    0.34 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    1000

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3 mm

LMV358DMR2G Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LMV358DMR2G is 670mW, which is calculated based on the maximum junction temperature (150°C) and the thermal resistance (125°C/W) of the package.
  • To ensure stability, it's recommended to use a compensation capacitor (typically 10-100pF) between the output and the inverting input pins, and to minimize the length of the input traces to reduce parasitic capacitance.
  • The recommended operating voltage range for the LMV358DMR2G is 2.7V to 5.5V, although the device can operate down to 2.2V with reduced performance.
  • To protect the LMV358DMR2G from ESD damage, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input pins, and to follow proper handling and storage procedures to prevent static electricity damage.
  • The maximum input voltage range for the LMV358DMR2G is from -0.3V to VCC + 0.3V, where VCC is the supply voltage. Exceeding this range may cause the device to malfunction or be damaged.
