LMV393DMR2G - onsemi

Description: Guaranteed 2.7 V and 5.0 V Performance; Input common-mode voltage range extends to ground; Open drain output for Wired-OR applications; Low Quiescent Current: 60 A/channel TYP @ 5.0 V; Low Saturation Voltage 200 mV TYP @ 5.0 V; Propagation Delay 200 ns TYP @ 5.0 V

Download LMV393DMR2G Model

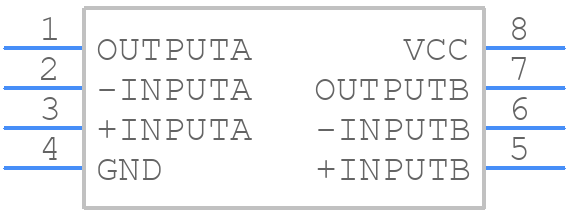

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LMV393DMR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - Micro8
click to zoom
3D Models
LMV393DMR2G - onsemi  - 3D model - Small Outline Packages - Micro8
click to zoom

LMV393DMR2G Details

  • Manufacturer Part Number:

    LMV393DMR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    Micro 8 lead Surface Mount

  • Pin Count:

    8

  • Manufacturer Package Code:

    846A-02

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    5.65

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    9000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    200 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.14 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LMV393DMR2G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the LMV393DMR2G is 2.7V to 5.5V.
  • To ensure stability, it's recommended to add a small capacitor (e.g., 10nF) between the output and ground to filter out high-frequency noise and oscillations.
  • The maximum input voltage that can be applied to the LMV393DMR2G is the supply voltage (VCC) + 0.3V, but not exceeding 6.5V.
  • No, the LMV393DMR2G is a comparator, not a voltage regulator. It's designed to compare two input voltages and output a digital signal, not regulate voltage.
  • When the input voltages are equal, the output of the LMV393DMR2G will be undefined. To handle this, you can add hysteresis to the input signals or use a Schmitt trigger configuration.
