LNBH21PD - STMicroelectronics

Description: LNB supply and control IC with step-up converter and I²C interface

Download LNBH21PD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

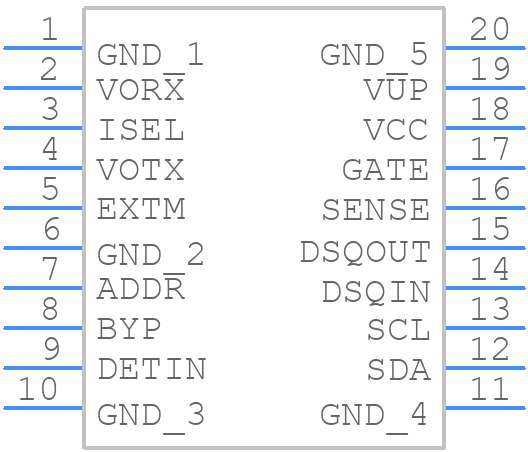

Symbol
LNBH21PD - STMicroelectronics - PCB symbol
click to zoom

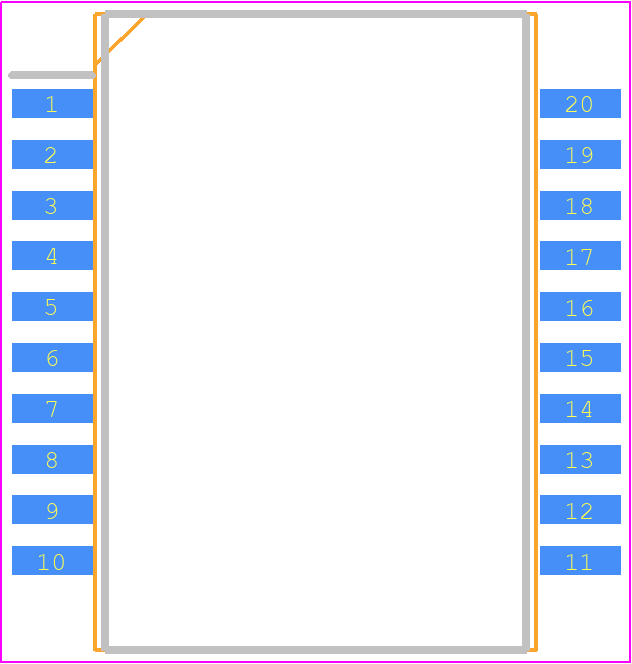

PCB Footprints
LNBH21PD - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSO-20
click to zoom
3D Models
LNBH21PD - STMicroelectronics - 3D model - Small Outline Packages - PowerSO-20
click to zoom

LNBH21PD Details

  • Manufacturer Part Number:

    LNBH21PD

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    POWER, SO-20

  • Pin Count:

    20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP20,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.6 mm

  • Supply Current-Max (Isup):

    40 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

LNBH21PD Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout and thermal management guidelines in their application note AN2866. It's essential to follow these guidelines to ensure proper heat dissipation and minimize thermal resistance.
  • The selection of external components such as capacitors, resistors, and inductors depends on the specific application and frequency range. STMicroelectronics provides a component selection guide in their datasheet and application notes. Additionally, simulation tools like LTspice can be used to simulate and optimize the component values.
  • The maximum input power that LNBH21PD can handle is not explicitly stated in the datasheet. However, according to STMicroelectronics' application notes, the device can handle input powers up to +10 dBm. It's essential to ensure that the input power is within the recommended range to avoid damage to the device.
  • A low-noise biasing scheme can be implemented using a low-dropout regulator (LDO) and a noise filter. STMicroelectronics provides a recommended biasing scheme in their application note AN2866. Additionally, using a high-PSRR LDO and a noise filter with a high cutoff frequency can help minimize noise injection.
  • The recommended operating temperature range for LNBH21PD is -40°C to +85°C. However, the device can operate up to +105°C with reduced performance and reliability. It's essential to ensure that the device operates within the recommended temperature range to maintain its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LNBH21PD Overview

Use the download button to access the LNBH21PD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LNBH2, or try a keyword search, such as Other Signal Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
