LNBH29EQTR - STMicroelectronics

Description: LNB supply and control IC with step-up and I²C interface

Download LNBH29EQTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

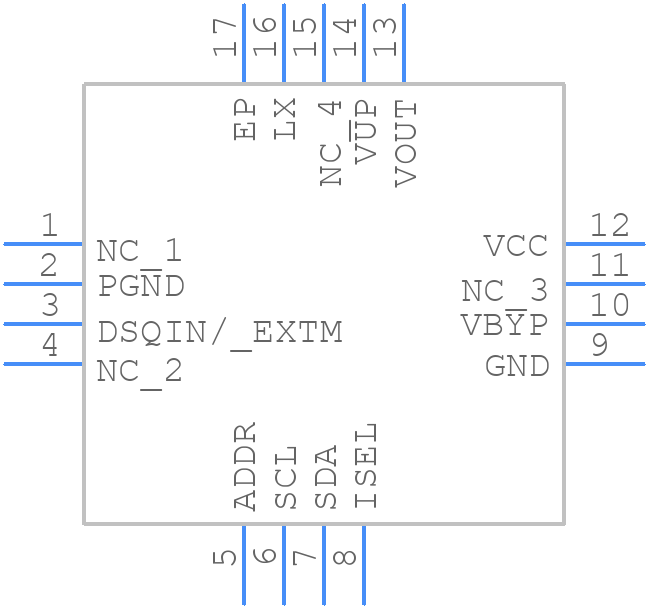

LNBH29EQTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LNBH29EQTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 (4 x 4 mm)
click to zoom
3D Models
LNBH29EQTR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN16 (4 x 4 mm)
click to zoom

LNBH29EQTR Details

  • Manufacturer Part Number:

    LNBH29EQTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN 16 4x4x1.0

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17.5 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    440 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4 mm

LNBH29EQTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout and thermal management guidelines in their application note AN2866. It's essential to follow these guidelines to ensure optimal performance, low noise, and high reliability.
  • The choice of external components, such as capacitors and resistors, depends on the specific application and frequency range. STMicroelectronics provides a component selection guide in their datasheet and application notes. Additionally, simulation tools like SPICE can help optimize component selection.
  • The LNBH29EQTR is rated for operation from -40°C to 125°C. However, it's essential to consider the derating curves and thermal management guidelines to ensure reliable operation over the entire temperature range.
  • To ensure EMC, follow the guidelines in STMicroelectronics' application note AN2866, which provides recommendations for PCB layout, shielding, and filtering. Additionally, consider using EMI filters and shielding components to minimize electromagnetic interference.
  • A proper power supply decoupling scheme is crucial for the LNBH29EQTR. STMicroelectronics recommends using a combination of ceramic and electrolytic capacitors, as well as a ferrite bead or inductor, to filter out noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LNBH29EQTR Overview

Use the download button to access the LNBH29EQTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LNBH2, or try a keyword search, such as Switching Regulator or Controllers
