LNBH29PTR - STMicroelectronics

Description: LNB supply and control IC with step-up and I²C interface

Download LNBH29PTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

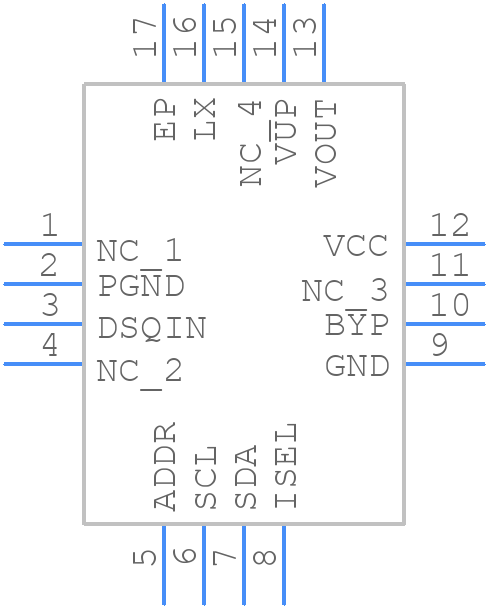

Symbol
LNBH29PTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LNBH29PTR - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN16 3x3
click to zoom
3D Models
LNBH29PTR - STMicroelectronics - 3D model - Quad Flat No-Lead - QFN16 3x3
click to zoom

LNBH29PTR Details

  • Manufacturer Part Number:

    LNBH29PTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-16L

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    17.5 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    440 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

LNBH29PTR Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LNBH29PTR is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate up to 125°C for short periods, but this may affect its reliability and lifespan.
  • To ensure proper biasing, follow the recommended voltage and current settings outlined in the datasheet. Typically, this involves applying a voltage of 3.3V to 5V to the VCC pin, and ensuring the current drawn from the VCC pin does not exceed the recommended maximum value.
  • The LNBH29PTR can handle input powers up to +10 dBm (10 mW) without damage. However, it's recommended to operate the device within the specified input power range of -20 dBm to +5 dBm for optimal performance and to prevent potential damage.
  • To troubleshoot issues with the LNBH29PTR, start by verifying the input signal quality, ensuring proper biasing and power supply, and checking for any signs of physical damage or overheating. If issues persist, consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
  • While the LNBH29PTR is primarily designed for low-noise amplifier applications up to 2 GHz, it can be used in high-frequency applications above 2 GHz with some limitations. However, the device's performance may degrade, and additional circuitry or components may be required to optimize its operation at higher frequencies.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LNBH29PTR Overview

Use the download button to access the LNBH29PTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LNBH2, or try a keyword search, such as Switching Regulator or Controllers
