LNBP8LIT - STMicroelectronics

Description: LNB supply and control voltage regulator

Download LNBP8LIT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

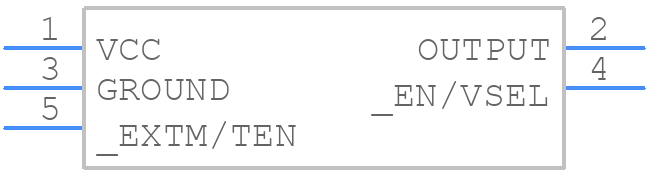

Symbol
LNBP8LIT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LNBP8LIT - STMicroelectronics PCB footprint - Other - Other - IPPAK_2024
click to zoom
3D Models
LNBP8LIT - STMicroelectronics - 3D model - Other - IPPAK_2024
click to zoom

LNBP8LIT Details

  • Manufacturer Part Number:

    LNBP8LIT

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SIP

  • Package Description:

    ROHS COMPLIANT, IPPAK-5

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Input Voltage-Max:

    25 V

  • Input Voltage-Min:

    15 V

  • Input Voltage-Nom:

    16 V

  • JESD-30 Code:

    R-PSIP-T5

  • Length:

    6.5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    125 °C

  • Output Current-Max:

    0.85 A

  • Output Voltage-Nom:

    19 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP5,.04,50TB

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    7.4 mm

  • Supply Current-Max (Isup):

    6.3 mA

  • Surface Mount:

    NO

  • Switching Frequency-Max:

    24 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    SINGLE

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    2.3 mm

LNBP8LIT Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for LNBP8LIT is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance may degrade at extreme temperatures, and it's crucial to ensure proper thermal management to maintain reliability.
  • To connect the LNBP8LIT to a microcontroller, ensure that the VCC pin is connected to a 3.3V or 5V power supply, and the GND pin is connected to the microcontroller's ground. The SCL and SDA pins should be connected to the microcontroller's I2C clock and data lines, respectively. Additionally, pull-up resistors may be required on the SCL and SDA lines, depending on the microcontroller's I2C configuration.
  • The maximum current consumption of the LNBP8LIT is typically around 1.5mA during normal operation, but it can reach up to 3mA during peak current conditions. It's essential to ensure that the power supply can provide sufficient current to the device to maintain reliable operation.
  • To calibrate the LNBP8LIT, you'll need to perform a two-point calibration process. First, take a reading at a known pressure point (e.g., atmospheric pressure), and then take a reading at a second known pressure point. Use these two points to calculate the sensitivity and offset values, which can then be used to correct subsequent pressure measurements.
  • The response time of the LNBP8LIT is typically around 1ms, but it can vary depending on the specific application and operating conditions. It's essential to consider the response time when designing your system to ensure accurate and reliable pressure measurements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LNBP8LIT Overview

Use the download button to access the LNBP8LIT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LNBP8, or try a keyword search, such as Switching Regulator or Controllers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
