Part Image

LNK306DG-TL - Power Integrations

Description: AC/DC Converters 225 mA (MDCM) 360 mA (CCM)

Download LNK306DG-TL Model

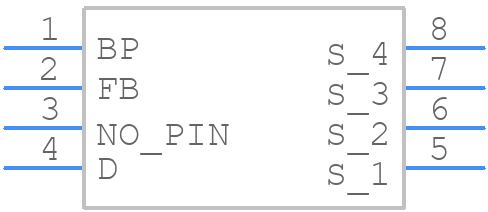

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

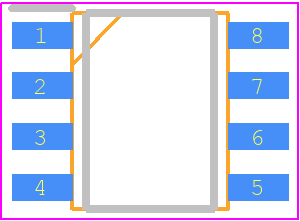

PCB Footprints
LNK306DG-TL - Power Integrations PCB footprint - Small Outline Packages - Small Outline Packages - LNK306DG-TL
click to zoom
3D Models
LNK306DG-TL - Power Integrations  - 3D model - Small Outline Packages - LNK306DG-TL
click to zoom

LNK306DG-TL Details

  • Manufacturer Part Number:

    LNK306DG-TL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    7.1

  • Additional Feature:

    REQUIRES AN AC SUPPLY OF 85 TO 256V

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Technique:

    PULSE WIDTH MODULATION

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    70 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LNK306DG-TL Overview

Use the download button to access the LNK306DG-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LNK30, or try a keyword search, such as Switching Regulator or Controllers

Parts related to LNK306DG-TL

Showing 0 results

LNK306DG-TL Alternates

Showing results

Image Part Number Model
Part Image LNK306DN Power Integrations

Switching Regulator, 1.4A, 70kHz Switching Freq-Max, PDSO8, SOP-8/7

Part Image LNK306DN-TL Power Integrations

Switching Regulator, 1.4A, 70kHz Switching Freq-Max, PDSO8, SOP-8/7

Part Image LNK306DG Power Integrations

Switching Regulator, 1.4A, 70kHz Switching Freq-Max, PDSO8, SOP-8/7
