LNK4114D-TL - Power Integrations

Description: IC OFF-LINE CNTRLR 15W 8SO

Download LNK4114D-TL Model

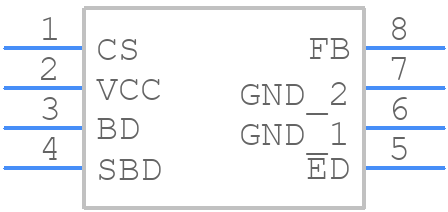

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LNK4114D-TL - Power Integrations PCB footprint - Small Outline Packages - Small Outline Packages - SO-8-
click to zoom
3D Models
LNK4114D-TL - Power Integrations  - 3D model - Small Outline Packages - SO-8-
click to zoom

LNK4114D-TL Details

  • Manufacturer Part Number:

    LNK4114D-TL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    3

  • Analog IC - Other Type:

    POWER SUPPLY SUPPORT CIRCUIT

  • Moisture Sensitivity Level:

    1

LNK4114D-TL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LNK4114D-TL is -40°C to 125°C, but the device is only guaranteed to meet specifications up to 85°C.
  • To ensure proper biasing for startup, make sure the VCC pin is connected to a stable voltage source (e.g., a capacitor to the output of the transformer) and the EN/UV pin is pulled high (e.g., to VCC) through a resistor.
  • For optimal performance, place the LNK4114D-TL close to the transformer and ensure that the high-frequency nodes (e.g., Drain, Source) are kept short and away from sensitive analog nodes. Use a solid ground plane and decouple the VCC pin with a capacitor to reduce noise.
  • The maximum output power for the LNK4114D-TL depends on the specific application and transformer design. As a general guideline, the maximum output power can be estimated using the formula: Pout = (Vin * Iin) / (η * 2), where Vin is the input voltage, Iin is the input current, and η is the efficiency of the converter.
  • When selecting a transformer for the LNK4114D-TL, consider the following key factors: turns ratio, magnetizing inductance, leakage inductance, and core losses. Ensure the transformer is designed to handle the maximum output power and voltage requirements of your application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LNK4114D-TL Overview

Use the download button to access the LNK4114D-TL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LNK41, or try a keyword search, such as Switching Regulator or Controllers
