LP0603A1880ANTR - Kyocera AVX

Description: Signal Conditioning 1880MHz 0603 SIZE

Download LP0603A1880ANTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

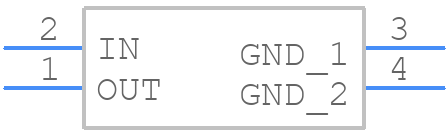

LP0603A1880ANTR - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints
LP0603A1880ANTR - Kyocera AVX PCB footprint - Other - Other - LP0603A1880ANTR-2
click to zoom
3D Models
LP0603A1880ANTR - Kyocera AVX - 3D model - Other - LP0603A1880ANTR-2
click to zoom

LP0603A1880ANTR Details

  • Manufacturer Part Number:

    LP0603A1880ANTR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    8

  • Attenuation Frequency-Max:

    3760 MHz

  • Attenuation Frequency-Min:

    5640 MHz

  • Attenuation@Freq-Max:

    25 dB

  • Attenuation@Freq-Min:

    17 dB

  • Average Input Power:

    3 W

  • Center or Cutoff Frequency (fo/fc):

    1880 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    0.6 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    0.5 dB

  • Length:

    1.6 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • Packing Method:

    TAPE AND REEL

  • Terminal Finish:

    NICKEL

  • VSWR:

    1.4

  • Width:

    0.84 mm

LP0603A1880ANTR Frequently Asked Questions (FAQs)

  • The recommended land pattern for LP0603A1880ANTR is a rectangular pad with a size of 0.6mm x 0.3mm, with a non-solder mask defined (NSMD) pad shape.
  • Yes, LP0603A1880ANTR is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • Yes, LP0603A1880ANTR is compatible with lead-free soldering processes, with a recommended reflow temperature profile of 260°C peak temperature.
  • The maximum operating temperature range for LP0603A1880ANTR is -55°C to +125°C, with a derating of capacitance and ESR above 85°C.
  • Yes, LP0603A1880ANTR meets the requirements of AEC-Q200, making it suitable for use in automotive applications.
