LP0AA0204A700 - Kyocera AVX

Description: SIGNAL CONDITIONING 204 MHZ SIZE MLO® Low Pass Filters Case size A

Download LP0AA0204A700 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

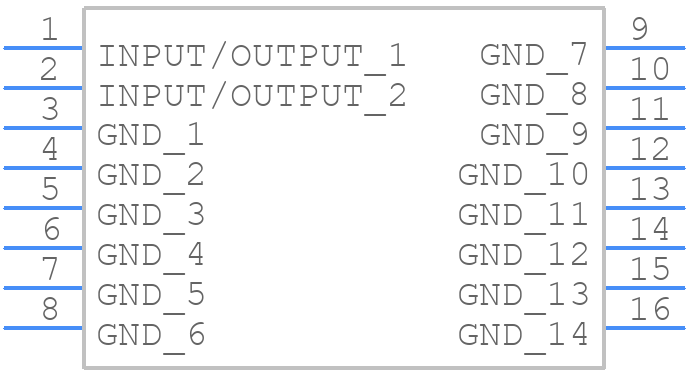

LP0AA0204A700 - Kyocera AVX - PCB symbol
click to zoom
PCB Footprints
LP0AA0204A700 - Kyocera AVX PCB footprint - Other - Other - Case size A
click to zoom
3D Models
LP0AA0204A700 - Kyocera AVX - 3D model - Other - Case size A
click to zoom

LP0AA0204A700 Details

  • Manufacturer Part Number:

    LP0AA0204A700

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Kyocera AVX Components

  • YTEOL:

    7

  • Average Input Power:

    4 W

  • Center or Cutoff Frequency (fo/fc):

    204 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    1.01 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.2 dB

  • Length:

    6.58 mm

  • Mounting Type:

    SURFACE MOUNT

  • Number of Sections-Max:

    1

  • Number of Sections-Min:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • Package Material:

    CERAMIC

  • Packing Method:

    WAFFLE PACK

  • Width:

    3.98 mm

LP0AA0204A700 Frequently Asked Questions (FAQs)

  • The recommended land pattern for LP0AA0204A700 is a rectangular pad with a size of 1.2mm x 0.8mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
  • Yes, LP0AA0204A700 is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated to prevent overheating and premature failure.
  • To prevent damage during PCB assembly, handle the LP0AA0204A700 by the edges, avoid touching the component's electrical contacts, and use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD).
  • Yes, LP0AA0204A700 is compatible with lead-free soldering processes, including SAC305 and Sn96.5Ag3Cu0.5. However, it's essential to follow the recommended soldering profile and temperature to ensure reliable joints.
  • The typical power rating for LP0AA0204A700 is 0.5W, but this can vary depending on the specific application and operating conditions. It's essential to consult the datasheet and perform thermal analysis to ensure the component is properly derated.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP0AA0204A700 Overview

Use the download button to access the LP0AA0204A700 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP0AA, or try a keyword search, such as General Purpose Passive Filters
