Part Image

LP1102NL - LINK-PP

Description: 100% Cross H1260T Pulse 10/100Base-T Single Port Transformer Modules

Download LP1102NL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

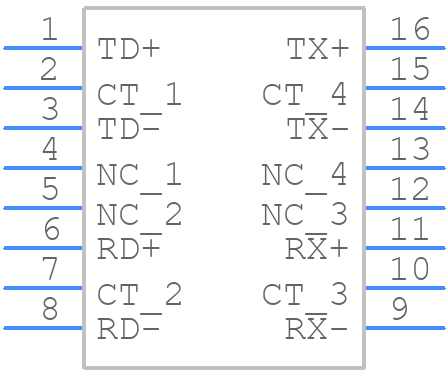

Symbol
LP1102NL - LINK-PP - PCB symbol
click to zoom
PCB Footprints
LP1102NL - LINK-PP PCB footprint - Other - Other - LP1102NL-1
click to zoom
3D Models
LP1102NL - LINK-PP - 3D model - Other - LP1102NL-1
click to zoom

LP1102NL Details

  • Manufacturer Part Number:

    LP1102NL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • Manufacturer:

    Link-PP Int'L Technology Co Ltd

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINAL ALSO

  • Application:

    10/100 BASE-T; LAN

  • Height:

    6.2 mm

  • Isolation Voltage:

    1500 V

  • Length:

    12.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    70 °C

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:1CT; 1CT:1CT

  • Width:

    7.15 mm

LP1102NL Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the component away from heat sources and ensure good airflow.
  • Use a stable input voltage, ensure the output capacitor is of sufficient value and type (e.g., X5R or X7R), and minimize the distance between the LP1102NL and the output capacitor.
  • Although the datasheet specifies a maximum input voltage of 15V, it's recommended to limit the input voltage to 12V to ensure reliable operation and minimize the risk of damage.
  • While the LP1102NL can operate up to 125°C, it's essential to consider the derating curves and ensure the device is properly heatsinked to prevent overheating and reduce the risk of failure.
  • Use a TVS diode or a transient voltage suppressor in parallel with the input capacitor to protect the LP1102NL from voltage surges and spikes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP1102NL Overview

Use the download button to access the LP1102NL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP110, or try a keyword search, such as Pulse/Datacom Transformers
