Part Image

LP11OA1NBSRGB - E-Switch

Description: PUSHBUTTON, 100mA, 12VDC SPST, Off-(On) Through Hole

Download LP11OA1NBSRGB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

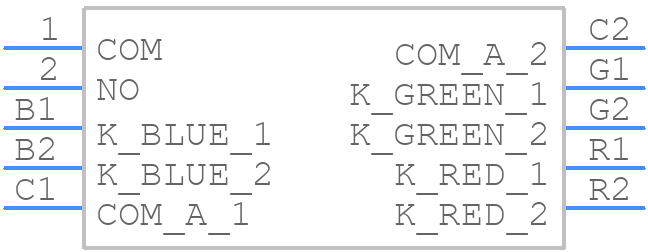

LP11OA1NBSRGB - E-Switch - PCB symbol
click to zoom
PCB Footprints

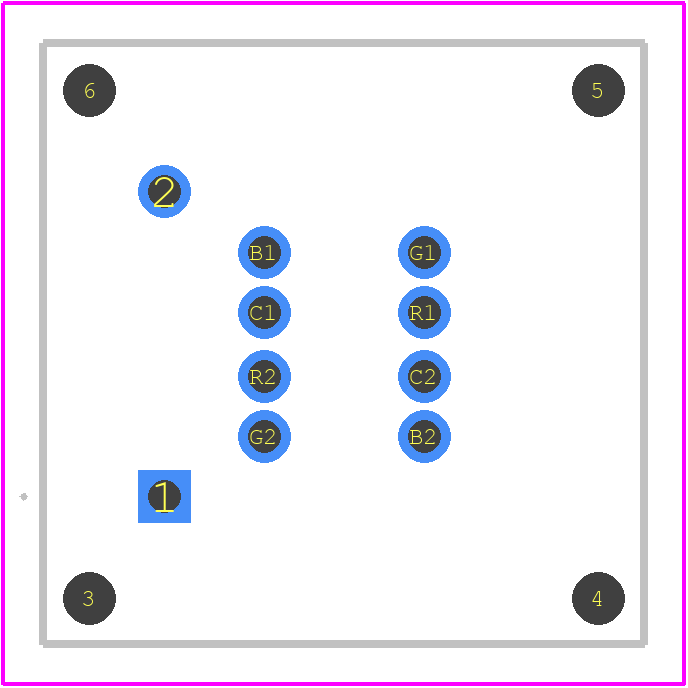

LP11OA1NBSRGB - E-Switch PCB footprint - Other - Other - LP11OA1NBSRGB-1
click to zoom
3D Models
LP11OA1NBSRGB - E-Switch - 3D model - Other - LP11OA1NBSRGB-1
click to zoom

LP11OA1NBSRGB Details

  • Manufacturer Part Number:

    LP11OA1NBSRGB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    E-Switch Inc

  • Manufacturer Series:

    LP11OA1NBSRGB

  • Switch Type:

    PUSHBUTTON SWITCH

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP11OA1NBSRGB Overview

Use the download button to access the LP11OA1NBSRGB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP11O, or try a keyword search, such as Pushbutton Switches
