The recommended torque for the LP15R1TRAWHTN switch actuator is 0.5 N·m to 1.5 N·m (0.36 lbf·in to 1.06 lbf·in) to ensure proper operation and prevent damage.
Yes, the LP15R1TRAWHTN is designed to withstand vibrations up to 10 G (98 m/s²) in the frequency range of 10 Hz to 2000 Hz, making it suitable for use in high-vibration environments.
The LP15R1TRAWHTN has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to use additional protection or sealing measures for outdoor or harsh environment applications.
The LP15R1TRAWHTN has a mechanical life expectancy of 10,000 to 50,000 cycles, depending on the operating conditions and usage. The electrical life expectancy is 100,000 to 500,000 cycles.
Yes, the LP15R1TRAWHTN is compliant with RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, making it suitable for use in EU and other regions with similar regulations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LP15R1TRAWHTN Overview

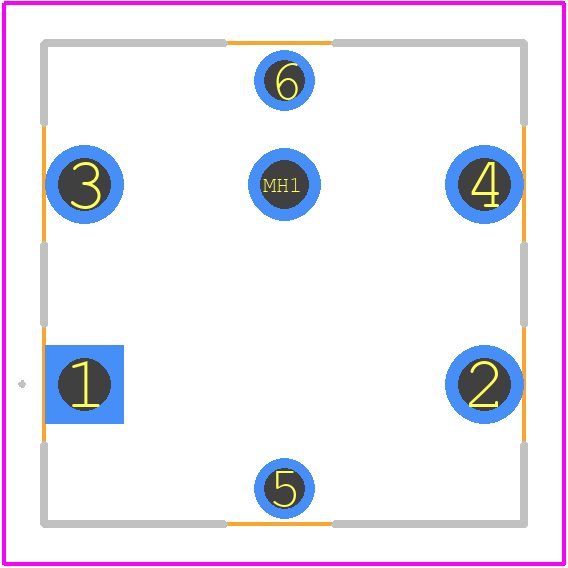

Use the download button to access the LP15R1TRAWHTN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP15R,
or try a keyword search, such as Pushbutton Switches
