Part Image

LP15R1WHTGRN-N - E-Switch

Description: PUSHBUTTON, 1mA, 20VDC SPST, Off-On Through Hole

Download LP15R1WHTGRN-N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LP15R1WHTGRN-N - E-Switch - PCB symbol
click to zoom

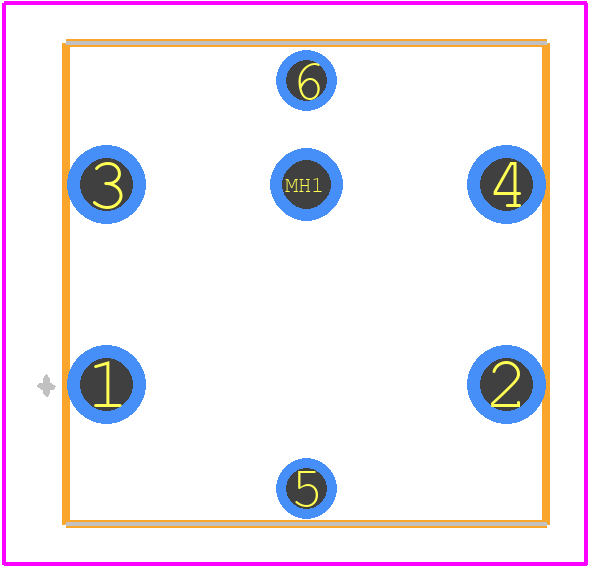

PCB Footprints
LP15R1WHTGRN-N - E-Switch PCB footprint - Other - Other - LP15R1WHTGRN-N-1
click to zoom
3D Models
LP15R1WHTGRN-N - E-Switch - 3D model - Other - LP15R1WHTGRN-N-1
click to zoom

LP15R1WHTGRN-N Details

  • Manufacturer Part Number:

    LP15R1WHTGRN-N

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    E-Switch Inc

  • Switch Type:

    PUSHBUTTON SWITCH

  • Terminal Finish:

    Gold Flash (Au) - with Nickel (Ni) barrier

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP15R1WHTGRN-N Overview

Use the download button to access the LP15R1WHTGRN-N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP15R, or try a keyword search, such as Pushbutton Switches
