LP2019ANL - LINK-PP

Description: SINGLE PORT, 10/100 BASE-T ETHERNET TRANSFORMER MODULES

Download LP2019ANL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

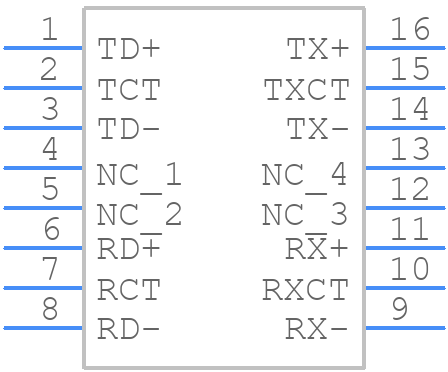

LP2019ANL - LINK-PP - PCB symbol
click to zoom
PCB Footprints
LP2019ANL - LINK-PP PCB footprint - Other - Other - LP2019ANL-1
click to zoom
3D Models
LP2019ANL - LINK-PP - 3D model - Other - LP2019ANL-1
click to zoom

LP2019ANL Details

  • Manufacturer Part Number:

    LP2019ANL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • Manufacturer:

    Link-PP Int'L Technology Co Ltd

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINAL ALSO

  • Application:

    10/100 BASE-TX; ETHERNET; LAN

  • Height:

    6.2 mm

  • Isolation Voltage:

    1500 V

  • Length:

    12.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1CT:1CT; 1CT:1CT

  • Width:

    7.15 mm
