Part Image

LP2951CD-3.3R2G - onsemi

Description: LP2951 also has Output Programmable from 1.25 V to 29 V; Requires Only a 1.0 mF Output Capacitor for Stability; Rated Output Current of 100 mA; Low Quiescent Current: 75 µA (Typ); Wide Input Range: Up to 30 V; Low Dropout 50 mV at 100 mA and 380 mV at 100 mA; LP2951 also has Error(bar) Output Signals an Out of Regulation Condition; Internal Current and Thermal Limiting; LP2951 also has Logic Level Shutdown Input; Extremely Tight Line and Load Regulation; 5.0 V, 3.3 V or 3.0 V +/- 0.5%

Download LP2951CD-3.3R2G Model

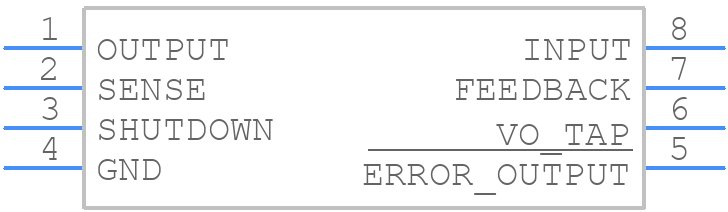

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LP2951CD-3.3R2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 NB CASE 751−07 ISSUEAK
click to zoom
3D Models
LP2951CD-3.3R2G - onsemi  - 3D model - Small Outline Packages - SOIC−8 NB CASE 751−07 ISSUEAK
click to zoom

LP2951CD-3.3R2G Details

  • Manufacturer Part Number:

    LP2951CD-3.3R2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.2

  • Adjustability:

    FIXED

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.35 V

  • Input Voltage Absolute-Max:

    30 V

  • Input Voltage-Max:

    30 V

  • Input Voltage-Min:

    4.3 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.0066%

  • Load Regulation-Max:

    0.0066%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    3.379 V

  • Output Voltage1-Min:

    3.221 V

  • Output Voltage1-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2.4%

  • Width:

    3.9 mm

LP2951CD-3.3R2G Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LP2951CD-3.3R2G is 30V, but it's recommended to keep it below 20V for optimal performance and to prevent overheating.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Also, keep the input and output capacitors close to the device and use a low-ESR capacitor for the output.
  • The minimum input voltage required for the LP2951CD-3.3R2G to function properly is 3.5V, but it's recommended to keep it above 4V for optimal performance.
  • The LP2951CD-3.3R2G is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to prevent overheating and ensure reliability.
  • The power dissipation of the LP2951CD-3.3R2G can be calculated using the formula: Pd = (Vin - Vout) x Iout. Make sure to consider the thermal resistance and junction temperature to ensure the device operates within its thermal limits.
