Part Image

LP2951CDR2G - onsemi

Description: LP2951 also has Output Programmable from 1.25 V to 29 V; Requires Only a 1.0 mF Output Capacitor for Stability; Rated Output Current of 100 mA; Low Quiescent Current: 75 µA (Typ); Wide Input Range: Up to 30 V; Low Dropout 50 mV at 100 mA and 380 mV at 100 mA; LP2951 also has Error(bar) Output Signals an Out of Regulation Condition; Internal Current and Thermal Limiting; LP2951 also has Logic Level Shutdown Input; Extremely Tight Line and Load Regulation; 5.0 V, 3.3 V or 3.0 V +/- 0.5%

Download LP2951CDR2G Model

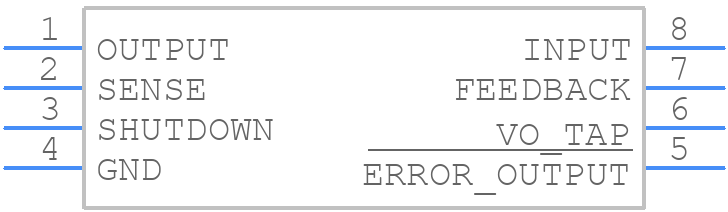

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LP2951CDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom
3D Models
LP2951CDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CAST 751-07
click to zoom

LP2951CDR2G Details

  • Manufacturer Part Number:

    LP2951CDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8 Narrow Body

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Adjustability:

    FIXED/ADJUSTABLE

  • Dropout Voltage1-Max:

    0.45 V

  • Dropout Voltage1-Nom:

    0.35 V

  • Input Voltage Absolute-Max:

    30 V

  • Input-Output Voltage Differential-Max:

    28.75 V

  • Input-Output Voltage Differential-Min:

    1 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Line Regulation-Max:

    0.01%

  • Load Regulation-Max:

    0.01%

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature TJ-Max:

    150 °C

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    0.1 A

  • Output Voltage1-Max:

    29 V

  • Output Voltage1-Min:

    1.25 V

  • Output Voltage1-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Regulator Type:

    FIXED/ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Voltage Tolerance-Max:

    2.4%

  • Width:

    3.9 mm

LP2951CDR2G Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LP2951CDR2G is 30V, but it's recommended to keep it below 24V for optimal performance and reliability.
  • To ensure stability, make sure to use a minimum output capacitance of 10uF, and keep the output capacitor's ESR (Equivalent Series Resistance) below 1 ohm. Also, avoid using ceramic capacitors with high ESL (Equivalent Series Inductance).
  • The LP2951CDR2G can regulate properly with an input voltage as low as 6.5V, but it's recommended to keep it above 7V for optimal performance.
  • The LP2951CDR2G is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the output current and voltage according to the temperature derating curve in the datasheet.
  • The output voltage of the LP2951CDR2G can be calculated using the formula: Vout = 1.23V x (1 + R1/R2), where R1 and R2 are the resistors used in the voltage divider network.
