LP4EE1PBATW - E-Switch

Description: PUSHBUTTON, 100mA, 30VDC DPDT, On-On Through Hole

Download LP4EE1PBATW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

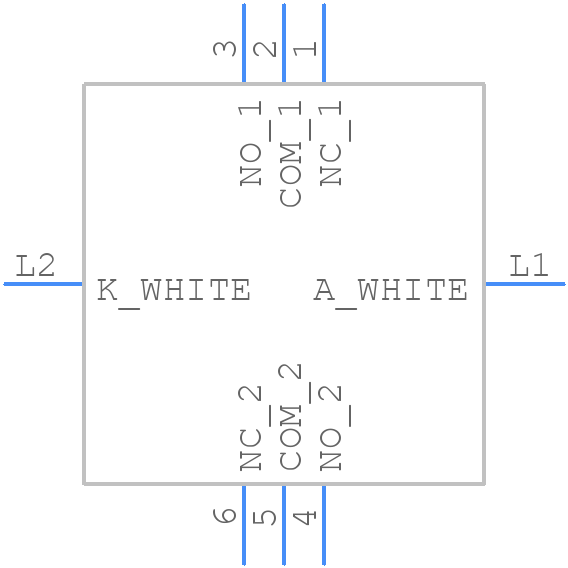

LP4EE1PBATW - E-Switch - PCB symbol
click to zoom
PCB Footprints
LP4EE1PBATW - E-Switch PCB footprint - Other - Other - LP4EE1PBATW-1
click to zoom
3D Models
LP4EE1PBATW - E-Switch - 3D model - Other - LP4EE1PBATW-1
click to zoom

LP4EE1PBATW Details

  • Manufacturer Part Number:

    LP4EE1PBATW

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.33

  • Manufacturer:

    E-Switch Inc

  • Actuator Travel:

    1.4986 mm

  • Actuator Type:

    PUSHBUTTON

  • Additional Feature:

    WHITE LED

  • Body Color:

    BLACK

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    0.1A@30VDC

  • Contact Resistance:

    0.05 mΩ

  • Contact Voltage(DC)-Max:

    30 V

  • Dielectric Withstand Volts:

    500VAC V

  • Electrical Life:

    50000 Cycle(s)

  • Illumination:

    LED

  • Insulation Resistance:

    100000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • PCB Hole Count:

    8

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    DPDT

  • Switch Type:

    PUSHBUTTON SWITCH

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER
