Part Image

LP4OA1PBCTB - E-Switch

Description: PUSHBUTTON, 100mA, 30VDC DPDT, On-(On) Through Hole

Download LP4OA1PBCTB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

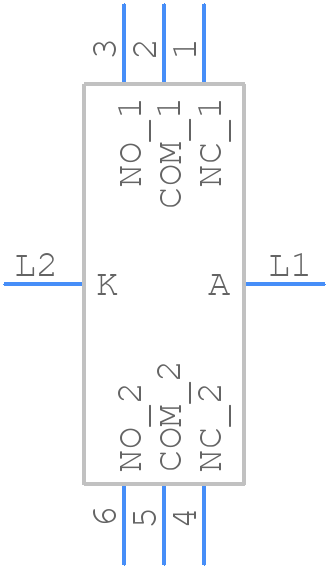

Symbol
LP4OA1PBCTB - E-Switch - PCB symbol
click to zoom
PCB Footprints
LP4OA1PBCTB - E-Switch PCB footprint - Other - Other - LP4OA1PBCTB-2
click to zoom
3D Models
LP4OA1PBCTB - E-Switch - 3D model - Other - LP4OA1PBCTB-2
click to zoom

LP4OA1PBCTB Details

  • Manufacturer Part Number:

    LP4OA1PBCTB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.31

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    8.1

  • Actuator Length:

    0.488 inch

  • Actuator Travel:

    1.4986 mm

  • Actuator Type:

    PUSHBUTTON

  • Additional Feature:

    BLUE LED

  • Body Breadth:

    7.493 mm

  • Body Color:

    BLACK

  • Body Height:

    7.2898 mm

  • Body Length or Diameter:

    8.7122 mm

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    0.1A@30VDC

  • Contact Resistance:

    0.05 mΩ

  • Contact Voltage(DC)-Max:

    30 V

  • Dielectric Withstand Volts:

    500VAC V

  • Electrical Life:

    50000 Cycle(s)

  • Illumination:

    LED

  • Insulation Resistance:

    100000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • PCB Hole Count:

    8

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    DPDT

  • Switch Type:

    PUSHBUTTON SWITCH

  • Terminal Length:

    0.138 inch

  • Termination Type:

    SOLDER

LP4OA1PBCTB Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LP4OA1PBCTB is -20°C to 70°C.
  • Yes, the LP4OA1PBCTB is designed for high-reliability applications, with a lifespan of up to 1 million cycles and a low contact resistance of 50mΩ max.
  • The LP4OA1PBCTB has a IP67 rating, making it suitable for use in harsh environments and allowing it to withstand washing with water or mild detergents.
  • The recommended PCB layout and land pattern for the LP4OA1PBCTB can be found in the E-Switch Inc datasheet or application notes, which provide detailed guidelines for optimal PCB design.
  • Yes, the LP4OA1PBCTB requires a peak soldering temperature of 260°C and a soldering time of 3 seconds max. It's also recommended to use a soldering iron with a temperature range of 200°C to 240°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP4OA1PBCTB Overview

Use the download button to access the LP4OA1PBCTB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LP4OA, or try a keyword search, such as Pushbutton Switches
