LP4OA1PBCTG - E-Switch

Description: PUSHBUTTON, 100mA, 30VDC DPDT, On-(On) Through Hole

Download LP4OA1PBCTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

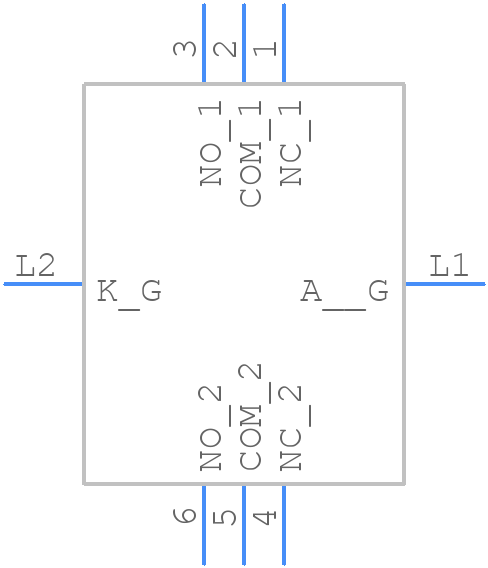

Symbol
LP4OA1PBCTG - E-Switch - PCB symbol
click to zoom
PCB Footprints
LP4OA1PBCTG - E-Switch PCB footprint - Other - Other - LP4OA1PBCTG-1
click to zoom
3D Models
LP4OA1PBCTG - E-Switch - 3D model - Other - LP4OA1PBCTG-1
click to zoom

LP4OA1PBCTG Details

  • Manufacturer Part Number:

    LP4OA1PBCTG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.31

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    8.1

  • Body Breadth:

    7.5 mm

  • Body Height:

    3.5 mm

  • Body Length or Diameter:

    10 mm

  • Contact Current(DC)-Max:

    0.1 A

  • Contact (DC) Max Rating R Load:

    0.1A@30VDC

  • Contact Voltage(DC)-Max:

    30 V

  • Illumination:

    GREEN LED

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operating Force-Max:

    3.43 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    DPDT

  • Switch Type:

    PUSHBUTTON SWITCH

  • Termination Type:

    SOLDER

LP4OA1PBCTG Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the LP4OA1PBCTG is -20°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate storage temperatures between -40°C to 100°C.
  • The LP4OA1PBCTG has built-in ESD protection, which can withstand electrostatic discharges up to 8kV, meeting the IEC 61000-4-2 standard. This ensures the device can operate reliably in environments prone to electrostatic interference.
  • The typical current consumption of the LP4OA1PBCTG is around 10mA, although this may vary depending on the specific application and operating conditions. It's essential to consult the datasheet for more detailed information on power consumption.
  • Yes, the LP4OA1PBCTG is compatible with lead-free soldering processes, making it suitable for modern manufacturing environments that prioritize environmental sustainability.
  • E-Switch Inc provides a recommended PCB layout and land pattern for the LP4OA1PBCTG in the datasheet or through their technical support channels. It's crucial to follow these guidelines to ensure reliable operation and minimize the risk of thermal or electrical issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LP4OA1PBCTG Overview

Use the download button to access the LP4OA1PBCTG schematic symbol, PCB footprint, and 3D model.
