The recommended mating sequence for the LPAM-10-01.0-L-04-2-K-TR is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the LPAM-10-01.0-L-04-2-K-TR is designed for high-speed applications, with a bandwidth of up to 32 Gbps. However, it's essential to follow proper PCB design and layout guidelines to ensure signal integrity.
The LPAM-10-01.0-L-04-2-K-TR has an operating temperature range of -55°C to 125°C, making it suitable for a wide range of applications, including industrial, automotive, and aerospace.
Yes, the LPAM-10-01.0-L-04-2-K-TR is designed for automated assembly processes, including pick-and-place and reflow soldering. Samtec provides detailed assembly guidelines and recommendations for automated assembly.
The typical lead time for the LPAM-10-01.0-L-04-2-K-TR varies depending on the quantity and shipping location. However, Samtec typically offers a lead time of 2-4 weeks for standard orders, with expedited options available for urgent requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LPAM-10-01.0-L-04-2-K-TR Overview

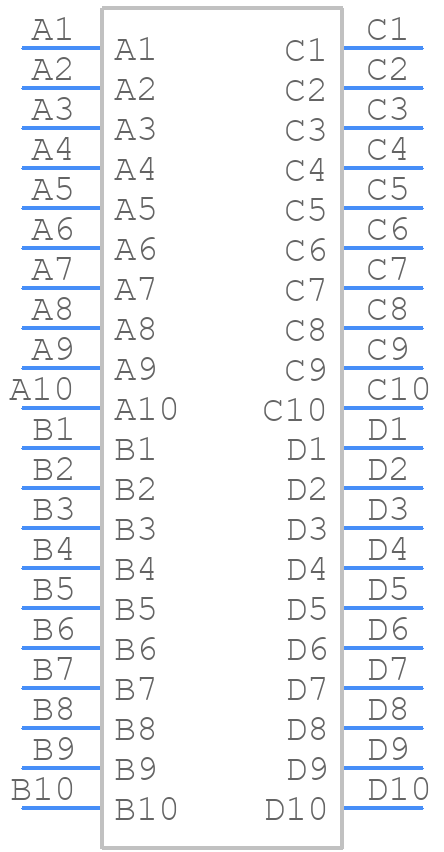

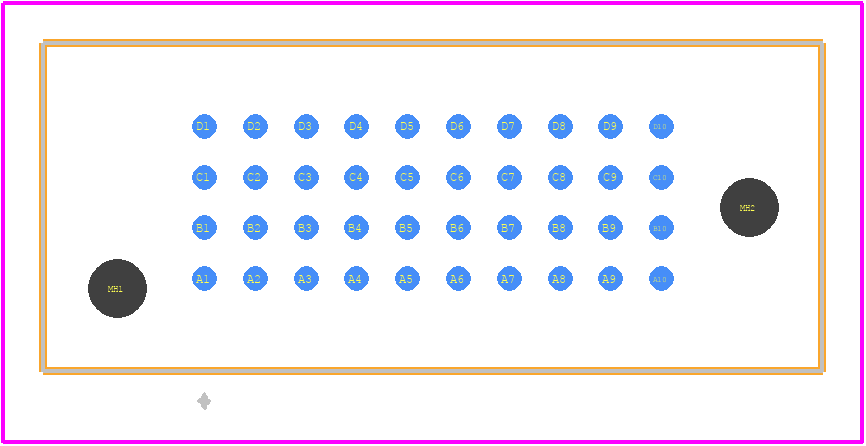

Use the download button to access the LPAM-10-01.0-L-04-2-K-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPAM-,
or try a keyword search, such as Headers and Edge Type Connectors
