LPAM-40-01.0-L-06-2-K-TR footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

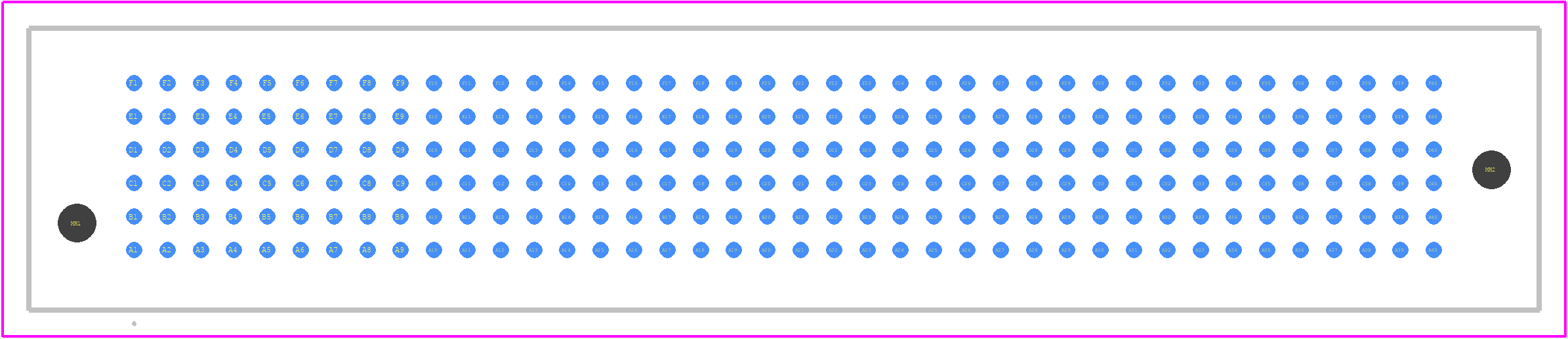

LPAM-40-01.0-L-06-2-K-TR - SAMTEC PCB footprint - Other - Other - LPAM-40-01.0-L-06-2-K-TR-1

click to zoom

3D Models

LPAM-40-01.0-L-06-2-K-TR - SAMTEC - 3D model - Other - LPAM-40-01.0-L-06-2-K-TR-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LPAM-40-01.0-L-06-2-K-TR
Part Number LPAM-40-01.0-L-06-2-K-TR
Manufacturer SAMTEC
Pin Count 240
Part Category Connector
Package Category Other
Footprint Name Other - LPAM-40-01.0-L-06-2-K-TR-1
Released Date Oct 8, 2025
Last Modified Date Oct 8, 2025 6:56 AM UTC
Pinout / Pin List Click Here (Member Only)

LPAM-40-01.0-L-06-2-K-TR Details

Manufacturer Part Number:
LPAM-40-01.0-L-06-2-K-TR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
5 Weeks, 6 Days
Manufacturer:
Samtec Inc
YTEOL:
8.75
Board Mounting Option:
PEG
Body Breadth:
0.422 inch
Body Depth:
0.145 inch
Body Length:
2.266 inch
Connector Type:
BOARD STACKING CONNECTOR
Contact Finish Mating:
AU ON NI
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
Contact Pattern:
MIXED
Contact Style:
BLADE PIN-SKT
Filter Feature:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Contact Pitch:
0.05 inch
Mating Contact Row Spacing:
0.05 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
6
Number of Rows Loaded:
6
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
1.27 mm
Plating Thickness:
10u inch
Rated Current (Signal):
2.2 A
Reference Standard:
UL
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
240

LPAM-40-01.0-L-06-2-K-TR Frequently Asked Questions (FAQs)

The recommended mating sequence for LPAM-40-01.0-L-06-2-K-TR is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the LPAM-40-01.0-L-06-2-K-TR is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure the connector remains secure.
The LPAM-40-01.0-L-06-2-K-TR has an operating temperature range of -55°C to +125°C. However, it's essential to consider the temperature rating of the specific application and ensure the connector is used within its recommended operating range.
The LPAM-40-01.0-L-06-2-K-TR has a specific mating height of 1.0mm. While it's possible to use it with a different mating height, it's not recommended as it may affect the connector's performance and reliability. Consult with Samtec Inc or a qualified engineer for custom solutions.
The recommended torque for the screws on LPAM-40-01.0-L-06-2-K-TR is 0.5 Nm to 1.5 Nm. It's essential to follow the recommended torque to ensure proper seating and prevent damage to the connector.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

LPAM-40-01.0-L-06-2-K-TR Overview

Use the download button to access the LPAM-40-01.0-L-06-2-K-TR schematic symbol, PCB footprint, and 3D model.
