LPC1115FBD48 - NXP

Description: System:  ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.  ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC).  Non-Maskable Interrupt (NMI) input selectable from several input sources (LPC1100XL series only).  Serial Wire Debug.  System tick timer.  Memory:  64 kB (LPC1115), 56 kB (LPC1114/333), 48 kB (LPC1114/323), 32 kB (LPC1114/102/201/202/203/301/302/303), 24 kB (LPC1113), 16 kB (LPC1112), 8 kB (LPC1111), or 4 kB (LPC1110) on-chip flash programming memor

Download LPC1115FBD48 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

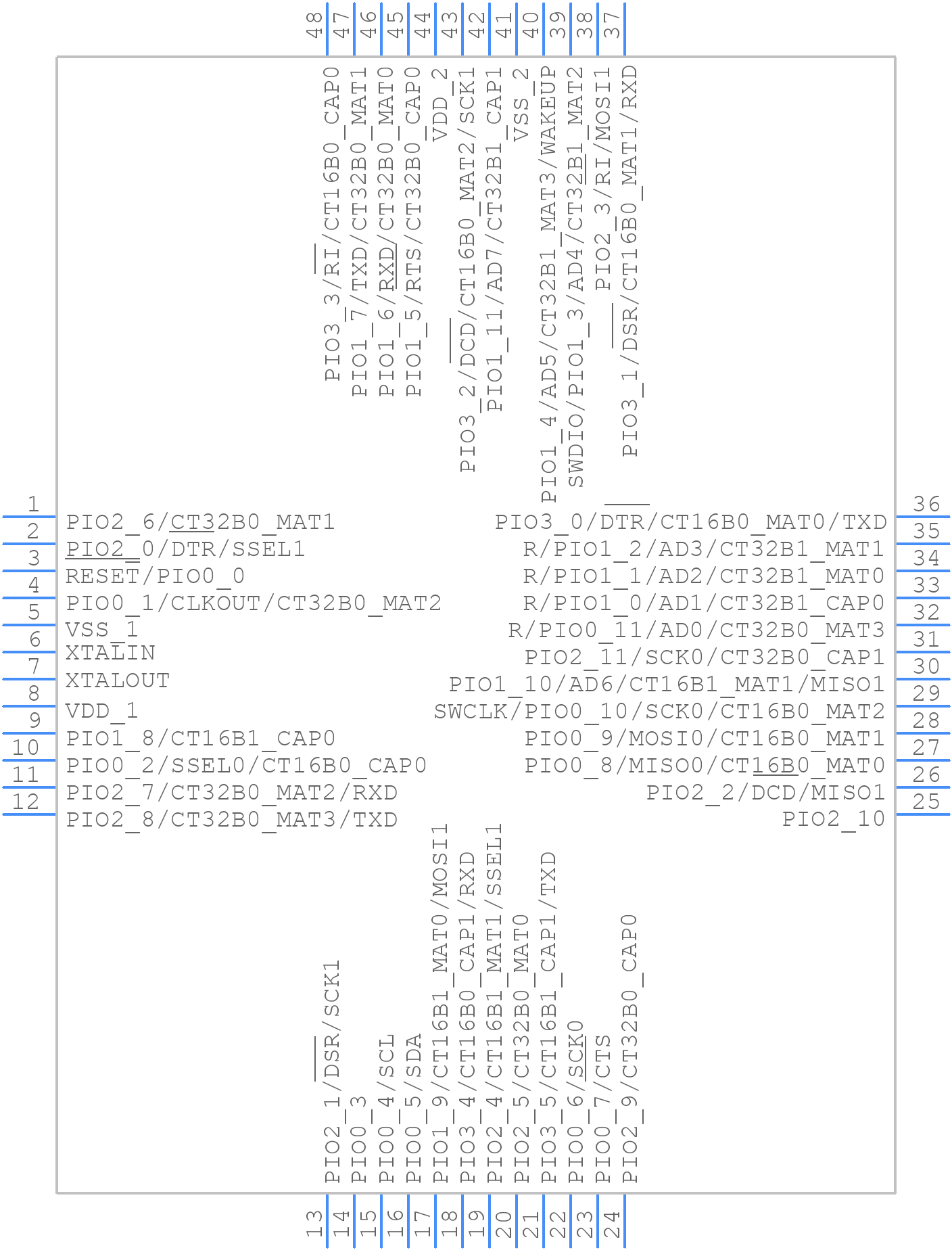

LPC1115FBD48 - NXP - PCB symbol
click to zoom
PCB Footprints
LPC1115FBD48 - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT313-2
click to zoom
3D Models
LPC1115FBD48 - NXP - 3D model - Quad Flat Packages - SOT313-2
click to zoom

LPC1115FBD48 Details

  • Manufacturer Part Number:

    LPC1115FBD48

  • Manufacturer:

    NXP Semiconductors

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPC1115FBD48 Overview

Use the download button to access the LPC1115FBD48 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPC11, or try a keyword search, such as Microcontrollers
