LPC1115JET48/303QL - NXP

Description: ARM® Cortex®-M0 LPC1100XL Microcontroller IC 32-Bit Single-Core 50MHz 64KB (64K x 8) FLASH 48-TFBGA (4.5x4.5)

Download LPC1115JET48/303QL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

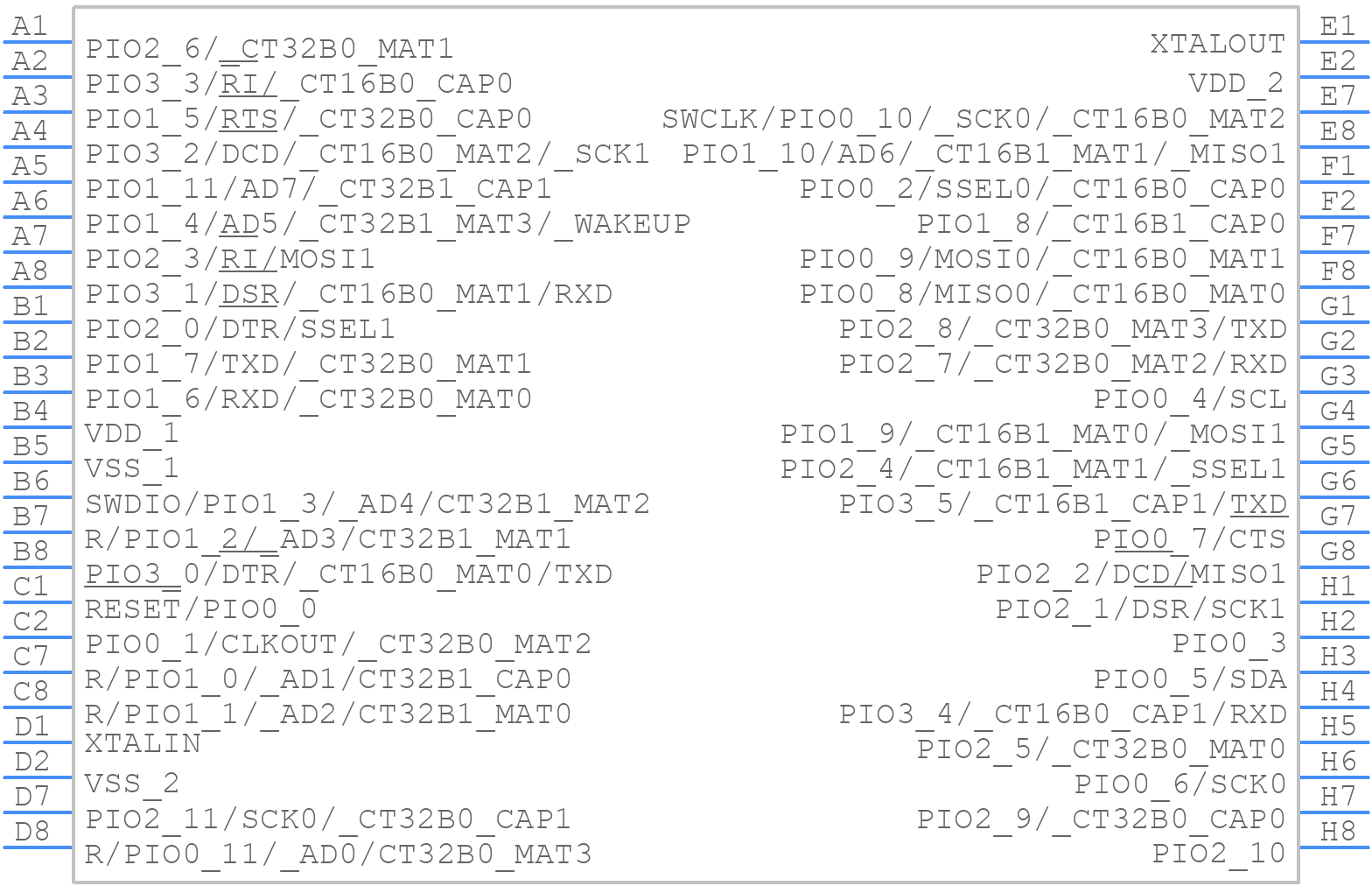

LPC1115JET48/303QL - NXP - PCB symbol
click to zoom
PCB Footprints
LPC1115JET48/303QL - NXP PCB footprint - BGA - BGA - TFBGA48*
click to zoom
3D Models
LPC1115JET48/303QL - NXP - 3D model - BGA - TFBGA48*
click to zoom

LPC1115JET48/303QL Details

  • Manufacturer Part Number:

    LPC1115JET48/303QL

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Pin Count:

    48

  • Manufacturer Package Code:

    SOT1155-2

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Has ADC:

    YES

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M0

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PBGA-B48

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    48

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA48,8X8,20

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    8192

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Speed:

    50 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

LPC1115JET48/303QL Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LPC1115JET48/303QL is -40°C to +85°C, as specified in the datasheet. However, it's recommended to operate the device within the industrial temperature range of -40°C to +70°C for optimal performance and reliability.
  • The internal oscillator of the LPC1115JET48/303QL can be configured using the SYSCON registers. Specifically, the IRC (Internal RC oscillator) can be enabled and configured using the SYSCTL_IRC_CTRL register. The IRC frequency can be set to 12 MHz, 18 MHz, or 24 MHz using the SYSCTL_IRC_FREQ_SEL register.
  • The maximum current consumption of the LPC1115JET48/303QL depends on the operating frequency, voltage, and peripherals used. According to the datasheet, the maximum current consumption is around 130 mA at 48 MHz with all peripherals enabled. However, this value can be reduced by optimizing the clock frequency, voltage, and peripheral usage.
  • The ADC on the LPC1115JET48/303QL can be used by configuring the ADC registers, such as the ADC_CTRL register to enable the ADC, and the ADC_CFG register to set the ADC clock and resolution. The ADC can be triggered using the ADC_TRIG register, and the conversion result can be read from the ADC_RDATA register.
  • Yes, the LPC1115JET48/303QL can be used with an external crystal oscillator. The external crystal oscillator can be connected to the XTALIN and XTALOUT pins, and the oscillator frequency can be set using the SYSCTL_XTAL_CTRL register. The external oscillator can be used as the clock source for the microcontroller.
