LPC11U68JBD48E - NXP

Description: ARM Microcontrollers - MCU LPC11U68JBD48/LQFP48/STANDARD

Download LPC11U68JBD48E Model

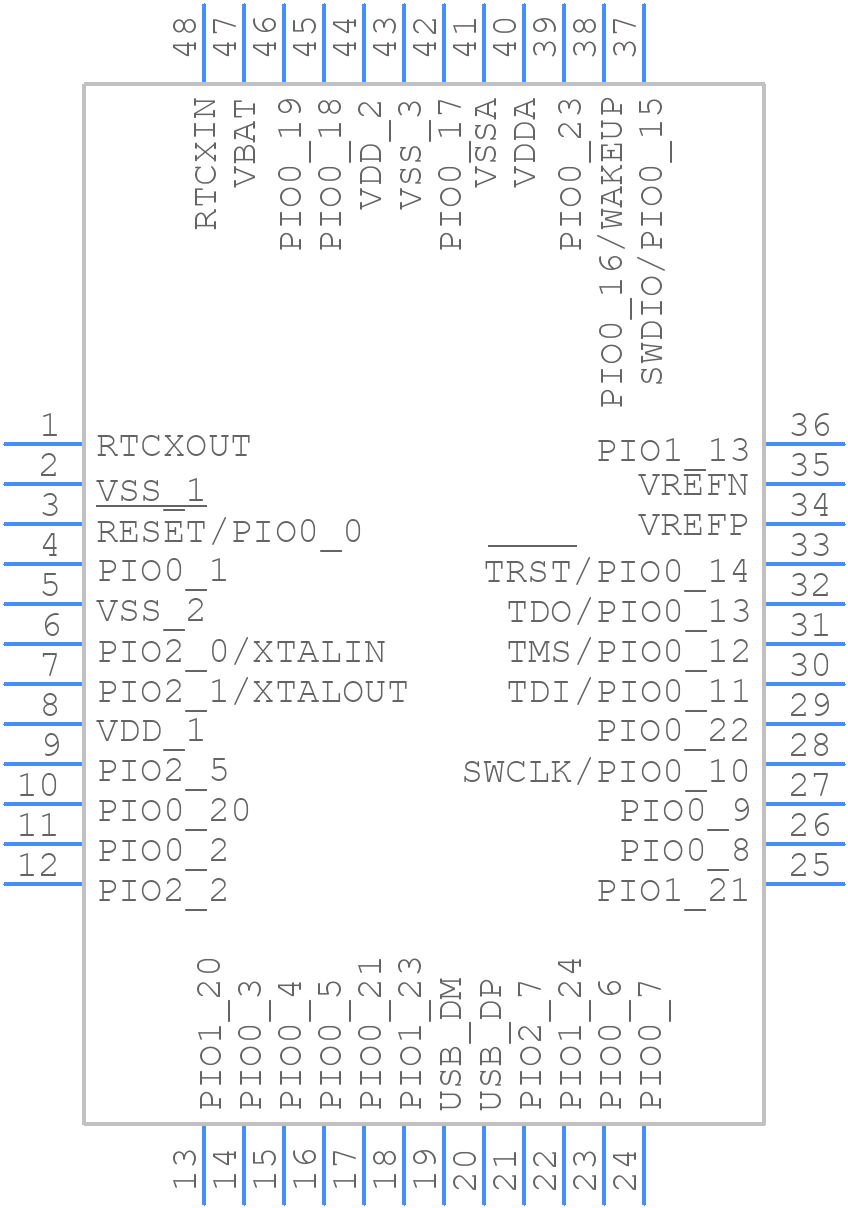

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LPC11U68JBD48E - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP48: plastic low profile quad flat package; 48 leads; body 7 x 7 x 1.4 mm SOT313-2
click to zoom
3D Models
LPC11U68JBD48E - NXP  - 3D model - Quad Flat Packages - LQFP48: plastic low profile quad flat package; 48 leads; body 7 x 7 x 1.4 mm SOT313-2
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for LPC11U68JBD48E
  • Part Number LPC11U68JBD48E
  • Manufacturer NXP
  • Pin Count 48
  • Part Category Integrated Circuit
  • Package Category Quad Flat Packages
  • Footprint Name Quad Flat Packages - LQFP48: plastic low profile quad flat package; 48 leads; body 7 x 7 x 1.4 mm SOT313-2
  • Released Date Mar 22, 2016
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

LPC11U68JBD48E Details

  • Manufacturer Part Number:

    LPC11U68JBD48E

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LQFP-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    SOT313-2

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • CPU Family:

    Cortex-M0+

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of DMA Channels:

    16

  • Number of External Interrupts:

    8

  • Number of I/O Lines:

    34

  • Number of Serial I/Os:

    3

  • Number of Terminals:

    48

  • Number of Timers:

    6

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    36864

  • ROM (words):

    262144

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    50 MHz

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

LPC11U68JBD48E Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the LPC11U68JBD48E is 50 MHz, but it can be overclocked to 60 MHz with a reduced voltage supply.
  • The internal oscillator on the LPC11U68JBD48E can be configured using the SYSCON registers. The IRC (Internal RC oscillator) is the default clock source, but it can be switched to the SYSOSC (System oscillator) or an external clock source using the SYSCON_CTRL register.
  • The maximum amount of current that the LPC11U68JBD48E can source or sink on its GPIO pins is 4 mA per pin, with a total current limit of 100 mA for all GPIO pins combined.
  • The ADC on the LPC11U68JBD48E is a 10-bit successive approximation ADC. It can be configured using the ADC registers, and the ADC clock can be set to a divisor of the system clock. The ADC can be triggered by a software command or an external event.
  • The BOOTLOADER pin on the LPC11U68JBD48E is used to select the boot mode of the device. When the pin is pulled low, the device boots from the internal flash memory. When the pin is pulled high, the device boots from an external source, such as a serial flash memory or a bootloader in an external memory.
