LPC1313FBD48 - NXP

Description: NXP Semiconductors LPC1313FBD48/LQFP48///STANDARD MARKING * TRAY PACK

Download LPC1313FBD48 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

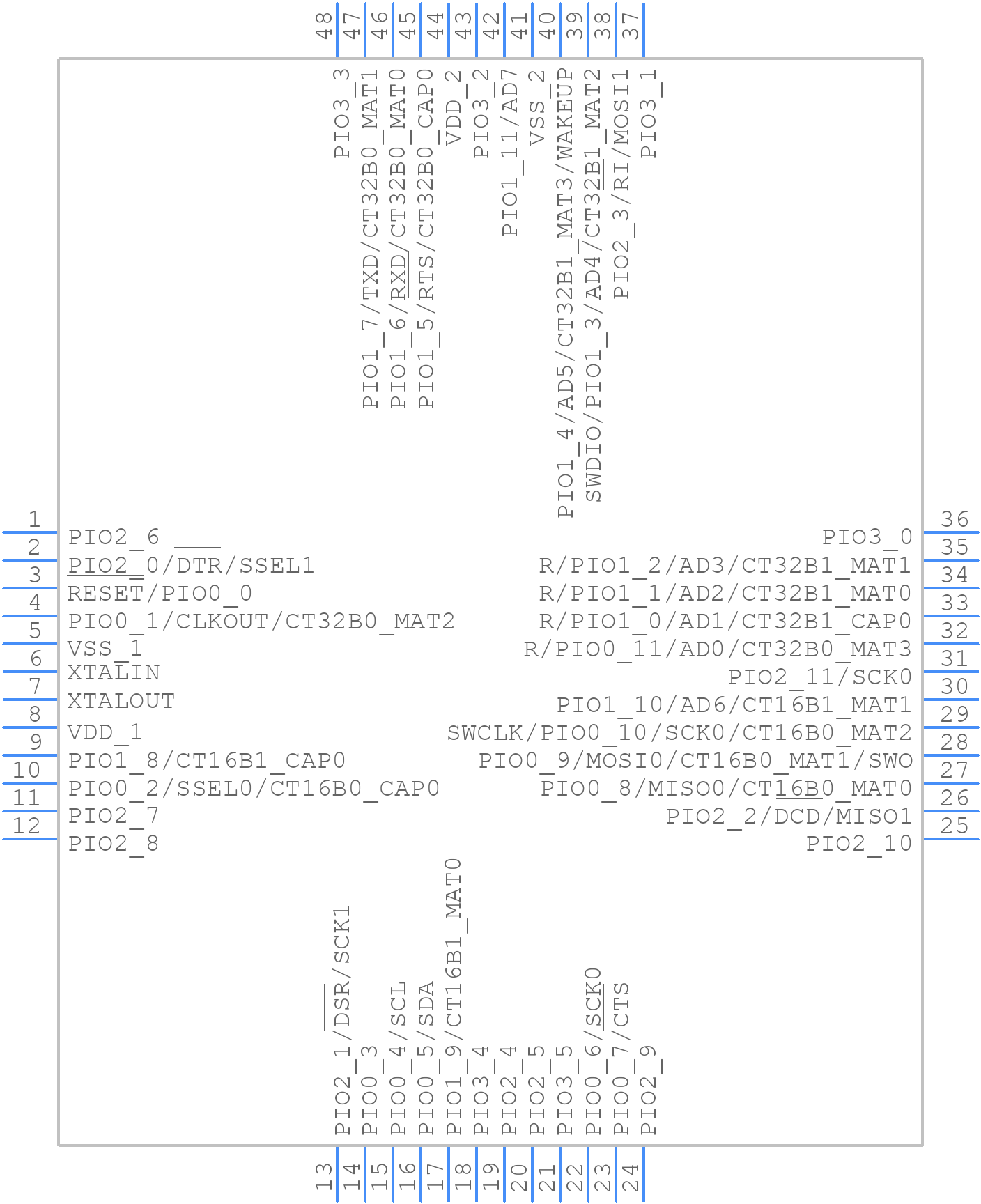

Symbol
LPC1313FBD48 - NXP - PCB symbol
click to zoom
PCB Footprints
LPC1313FBD48 - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP48 (SOT313-2)
click to zoom
3D Models
LPC1313FBD48 - NXP - 3D model - Quad Flat Packages - LQFP48 (SOT313-2)
click to zoom

LPC1313FBD48 Details

  • Manufacturer Part Number:

    LPC1313FBD48

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, 1.40 MM HEIGHT, PLASTIC, MS-026, SOT313-2, LQFP-48

  • Pin Count:

    48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    1

  • Number of I/O Lines:

    40

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    72 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

LPC1313FBD48 Frequently Asked Questions (FAQs)

  • The maximum clock frequency that can be achieved with the internal oscillator is 12 MHz. However, it's recommended to use an external crystal oscillator for more accurate and stable clock frequencies.
  • The pin multiplexing can be configured using the PINSELx registers. Each peripheral function has a specific pin assignment, and the PINSELx registers allow you to select which function is assigned to each pin. Refer to the datasheet and the LPC1313 user manual for more information.
  • The maximum current that can be sourced or sunk by the GPIO pins is 4 mA. However, it's recommended to limit the current to 2 mA or less to ensure reliable operation and to prevent overheating.
  • The LPC1313 has several low-power modes, including Sleep, Deep Sleep, and Power-Down modes. These modes can be entered using the PCON register. Additionally, you can use the ARM Cortex-M3's built-in sleep modes, such as WFI (Wait For Interrupt) and WFE (Wait For Event). Refer to the datasheet and the LPC1313 user manual for more information.
  • The minimum voltage required for the LPC1313 to operate correctly is 2.4 V. However, it's recommended to operate the device at a voltage between 2.7 V and 3.6 V for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPC1313FBD48 Overview

Use the download button to access the LPC1313FBD48 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPC13, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
