LPC1313FHN33 - NXP

Description: NXP Semiconductors LPC1313FHN33/HVQFN32///STANDARD MARKING * TRAY DRY

Download LPC1313FHN33 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

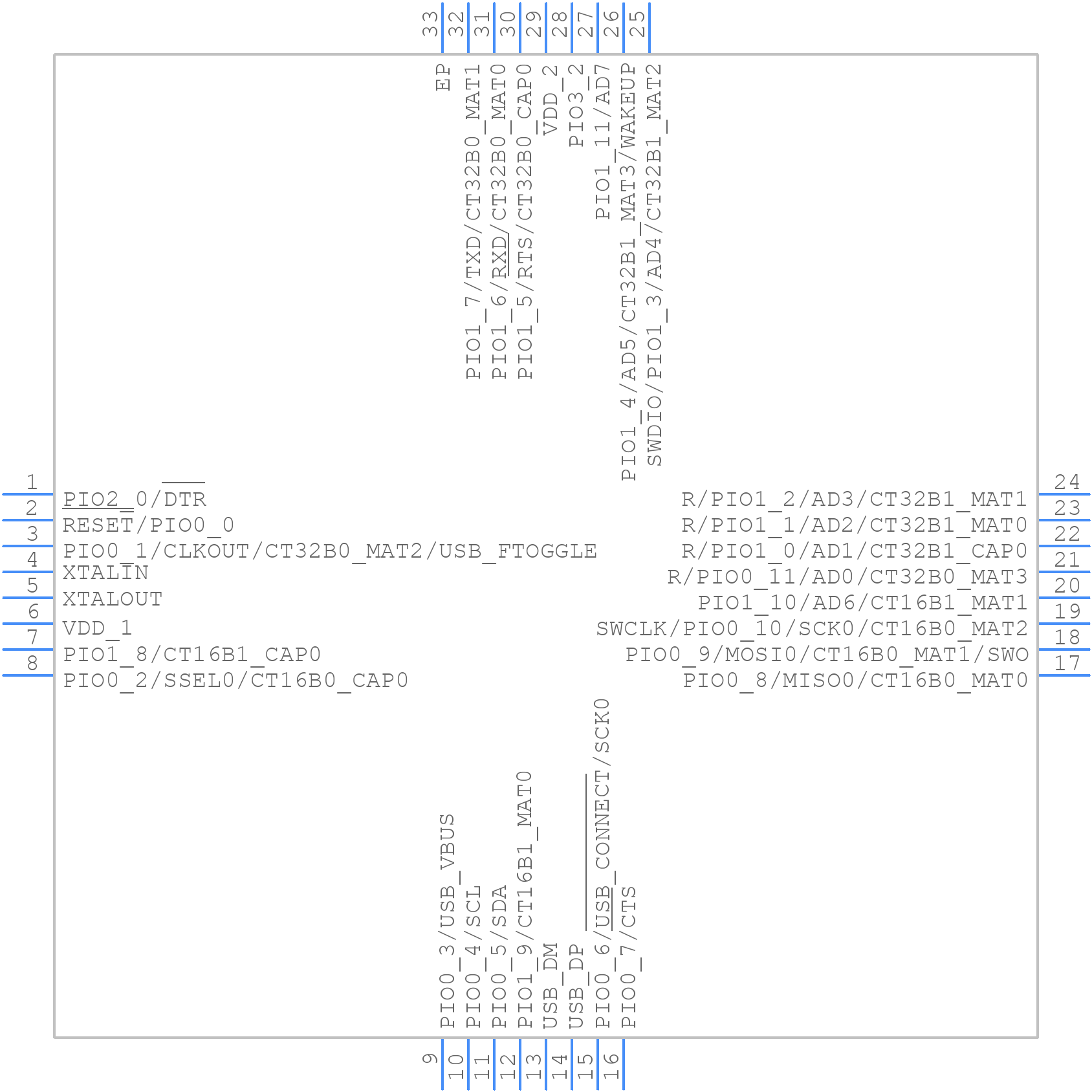

Symbol
LPC1313FHN33 - NXP - PCB symbol
click to zoom
PCB Footprints
LPC1313FHN33 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN33
click to zoom
3D Models
LPC1313FHN33 - NXP - 3D model - Quad Flat No-Lead - HVQFN33
click to zoom

LPC1313FHN33 Details

  • Manufacturer Part Number:

    LPC1313FHN33

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    QFN

  • Package Description:

    7 X 7 MM, 0.85 MM HEIGHT, PLASTIC, HVQFN-33

  • Pin Count:

    33

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Has ADC:

    YES

  • Bit Size:

    32

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQCC-N33

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    25

  • Number of Terminals:

    33

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1 mm

  • Speed:

    72 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

LPC1313FHN33 Frequently Asked Questions (FAQs)

  • The internal oscillator can be configured to run up to 12 MHz, but the maximum clock frequency depends on the voltage and temperature range. At 3.3V and 25°C, the maximum clock frequency is around 10 MHz.
  • The pin multiplexing is configured using the PINSEL registers. Each peripheral function has a corresponding PINSEL register that needs to be set to enable the function on the desired pin. Refer to the user manual for the specific register settings.
  • The ADC requires a minimum voltage of 2.4V to operate accurately. Below this voltage, the ADC may not provide reliable results.
  • The LPC1313FHN33 has several low-power modes, including Sleep, Deep Sleep, and Power-Down modes. These modes can be entered by configuring the PCON register and using the WFI (Wait For Interrupt) instruction. The user manual provides more details on how to implement these modes.
  • Yes, the LPC1313FHN33 can be used with an external crystal oscillator. The external oscillator can be connected to the XTALIN and XTALOUT pins, and the clock source can be selected using the CLKSRC register.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPC1313FHN33 Overview

Use the download button to access the LPC1313FHN33 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPC13, or try a keyword search, such as Microcontrollers
