LPC1788FET208,551 - NXP

Description: MCU,120MHz,Cortex M3,512KB Flash,BGA208 NXP LPC1788FET208,551, 32bit ARM Cortex M3 Microcontroller, 120MHz, 512 kB Flash, 208-Pin TFBGA

Download LPC1788FET208,551 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

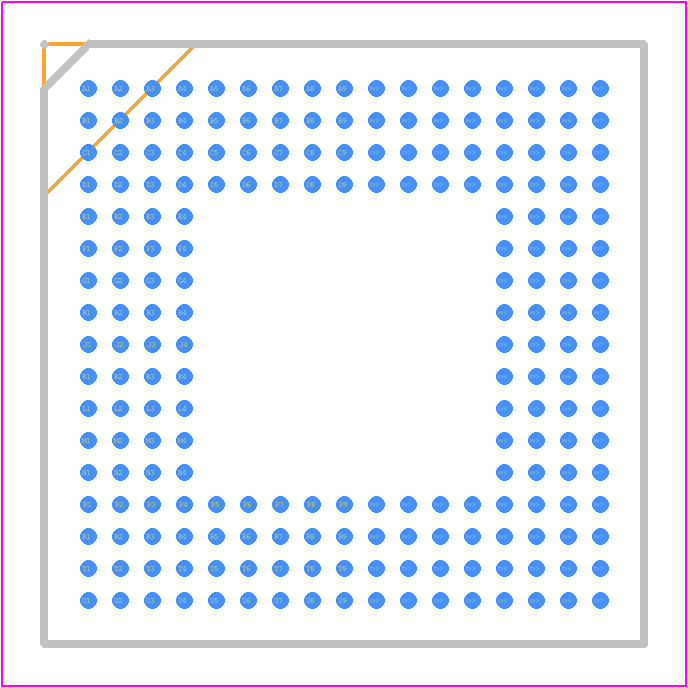

LPC1788FET208,551 - NXP PCB footprint - BGA - BGA - SOT950-1
click to zoom
3D Models
LPC1788FET208,551 - NXP  - 3D model - BGA - SOT950-1
click to zoom

LPC1788FET208,551 Details

  • Manufacturer Part Number:

    LPC1788FET208,551

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    15 X 15 MM, 0.70 MM HEIGHT, PLASTIC, SOT950-1, TFBGA-208

  • Pin Count:

    208

  • Manufacturer Package Code:

    SOT950-1

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Has ADC:

    YES

  • Address Bus Width:

    26

  • Bit Size:

    32

  • CPU Family:

    CORTEX-M3

  • Clock Frequency-Max:

    25 MHz

  • DAC Channels:

    YES

  • DMA Channels:

    YES

  • External Data Bus Width:

    32

  • JESD-30 Code:

    S-PBGA-B208

  • JESD-609 Code:

    e1

  • Length:

    15 mm

  • Moisture Sensitivity Level:

    2

  • Number of I/O Lines:

    165

  • Number of Terminals:

    208

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    BGA208,17X17,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    98304

  • ROM (words):

    524288

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.2 mm

  • Speed:

    120 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.4 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    15 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
