LPC2214FBD144 - NXP

LPC2214FBD144 Details

• Manufacturer Part Number:

  LPC2214FBD144

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

• Package Description:

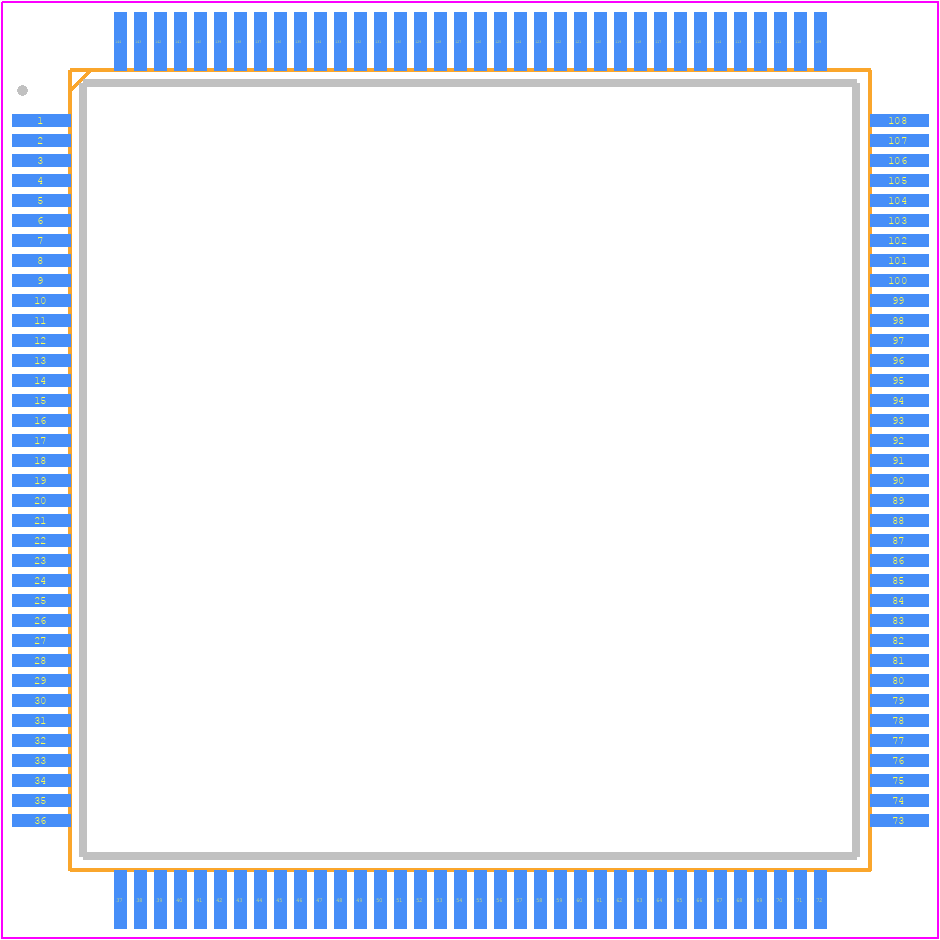

  20 X 20 MM, 1.40 MM HEIGHT, PLASTIC, MS-026, SOT-486-1, LQFP-144

• Pin Count:

  144

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.25

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Has ADC:

  NO

• Additional Feature:

  ALSO REQUIRES 3.3 V SUPPLY

• Address Bus Width:

  24

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  ARM7

• Clock Frequency-Max:

  50 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  32

• JESD-30 Code:

  S-PQFP-G144

• JESD-609 Code:

  e3

• Length:

  20 mm

• Moisture Sensitivity Level:

  2

• Number of I/O Lines:

  112

• Number of Terminals:

  144

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP144,.87SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  16384

• ROM (words):

  262144

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  60 MHz

• Supply Voltage-Max:

  1.95 V

• Supply Voltage-Min:

  1.8 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  20 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
