LPC4322JET100 footprint, schematic symbol and 3D model by NXP

Symbol

click to zoom

PCB Footprints

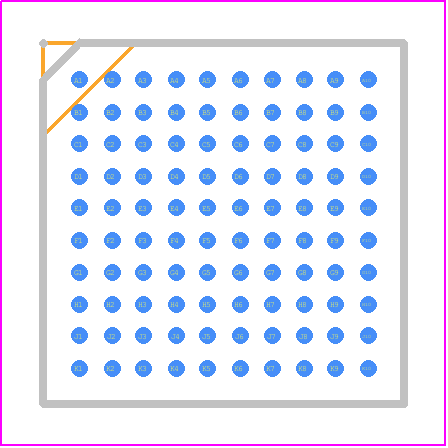

LPC4322JET100 - NXP PCB footprint - BGA - BGA - SOT926-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LPC4322JET100
Part Number LPC4322JET100
Manufacturer NXP
Pin Count 100
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - SOT926-1
Released Date Jul 1, 2026
Last Modified Date Jul 1, 2026 9:26 AM UTC
Pinout / Pin List Click Here (Member Only)

LPC4322JET100 Details

Manufacturer Part Number:
LPC4322JET100
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
9 X 9 MM, 0.70 MM HEIGHT, PLASTIC, SOT926-1, TFBGA-100
Country Of Origin:
Taiwan
ECCN Code:
3A991.A.2
HTS Code:
8542.31.00.25
Manufacturer:
NXP Semiconductors
YTEOL:
5
Has ADC:
YES
Bit Size:
32
Clock Frequency-Max:
25 MHz
DAC Channels:
YES
DMA Channels:
YES
JESD-30 Code:
S-PBGA-B100
Length:
9 mm
Moisture Sensitivity Level:
3
Number of I/O Lines:
49
Number of Terminals:
100
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
PWM Channels:
NO
Package Body Material:
PLASTIC/EPOXY
Package Code:
TFBGA
Package Shape:
SQUARE
Package Style:
GRID ARRAY, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
ROM Programmability:
FLASH
Seated Height-Max:
1.2 mm
Speed:
204 MHz
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.2 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
9 mm
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER, RISC

LPC4322JET100 Frequently Asked Questions (FAQs)

The maximum operating temperature range for the LPC4322JET100 is -40°C to +105°C, but this can be extended to -40°C to +125°C for some specific packages and with certain limitations.
The internal oscillators on the LPC4322JET100 can be configured using the SYSCON block, which is controlled through the SYSCON_CTRL register. The IRC (Internal RC oscillator) and FRO (Fast RC oscillator) can be enabled and configured using this register.
The maximum clock frequency that can be achieved on the LPC4322JET100 is 204 MHz, which is the maximum frequency of the CPU clock (CCLK). However, this frequency can be adjusted using the clock divider and multiplier settings in the SYSCON block.
The ADC on the LPC4322JET100 is a 12-bit successive approximation ADC with up to 8 channels. It can be configured and controlled using the ADC registers, including the ADC_CTRL register, ADC_CFG register, and ADC_DATA register. The ADC can be triggered using a software trigger or an external trigger signal.
The LPC4322JET100 has up to 1 MB of flash memory and up to 136 KB of SRAM (static RAM). The exact amount of memory available depends on the specific package and device variant.
