LPC43S67JBD208E - NXP

Description: ARM Microcontrollers - MCU 32-bit ARM Cortex-M4/M0 MCU

Download LPC43S67JBD208E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LPC43S67JBD208E - NXP - PCB symbol
click to zoom
PCB Footprints

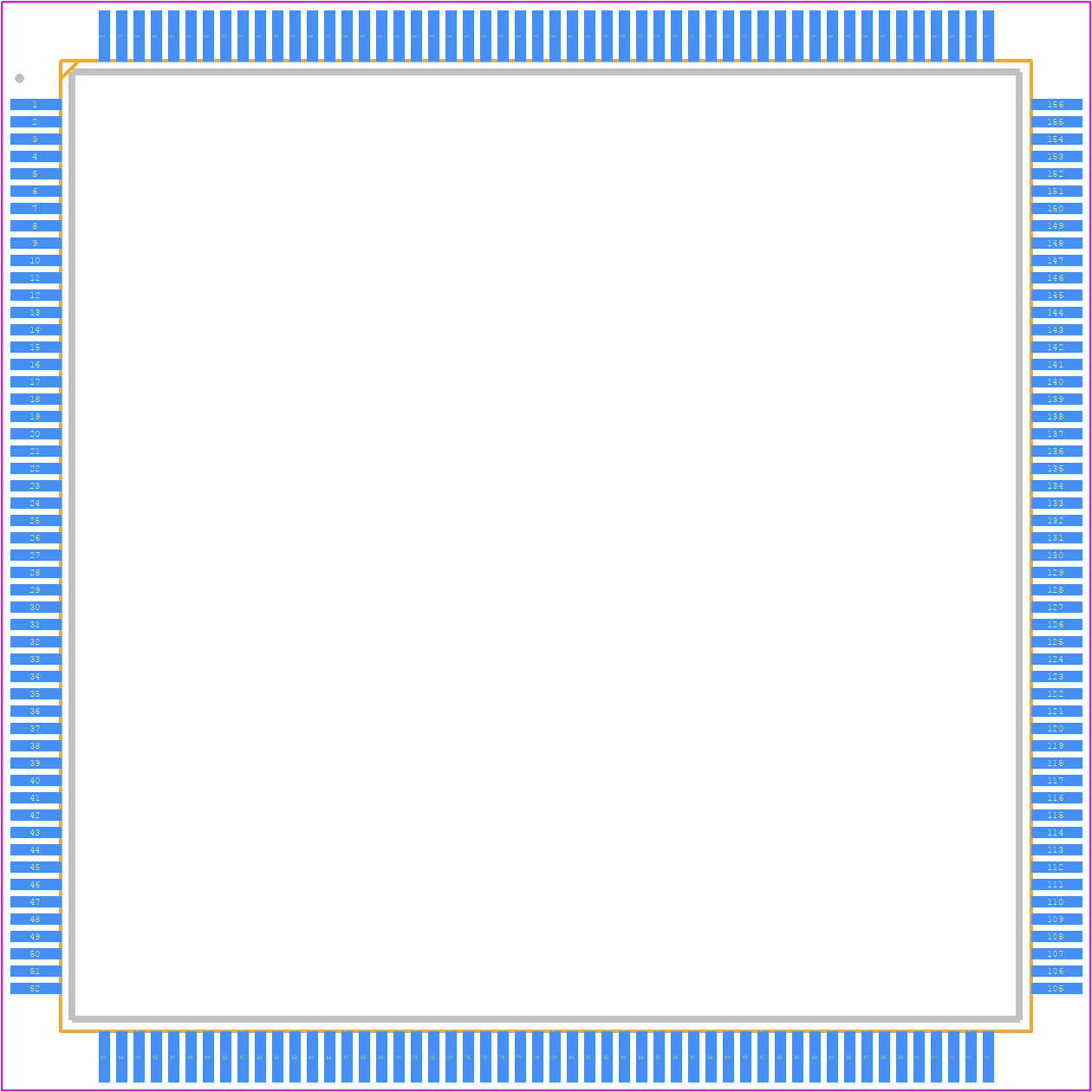

LPC43S67JBD208E - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP208-SOT459-1(208-28x28x1.4mm)
click to zoom
3D Models
LPC43S67JBD208E - NXP - 3D model - Quad Flat Packages - TQFP208-SOT459-1(208-28x28x1.4mm)
click to zoom

LPC43S67JBD208E Details

  • Manufacturer Part Number:

    LPC43S67JBD208E

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    208

  • Manufacturer Package Code:

    SOT459-1

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

LPC43S67JBD208E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LPC43S67JBD208E is -40°C to +105°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures.
  • To configure the internal oscillators for optimal performance, refer to the LPC43S67JBD208E user manual, which provides detailed information on the oscillator settings and calibration procedures. Additionally, NXP provides a clock configuration tool that can help with oscillator setup.
  • The maximum current consumption of the LPC43S67JBD208E depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the maximum current consumption is around 350 mA at 204 MHz, 3.3 V, and with all peripherals enabled. However, this value can be reduced by optimizing the power consumption through techniques like clock gating and peripheral shutdown.
  • The LPC43S67JBD208E has a built-in secure boot mechanism that uses a boot ROM and a secure flash programming interface. To implement secure boot and secure firmware updates, refer to the LPC43S67JBD208E security application note and the NXP Secure Boot Solution documentation. Additionally, NXP provides a Secure Firmware Update (SFU) tool that can help with secure firmware updates.
  • The LPC43S67JBD208E has a USB 2.0 high-speed device controller with a maximum data transfer rate of 480 Mbps. However, the device's USB interface has some limitations, such as a maximum of 8 endpoints, and a limited amount of dedicated USB RAM. Additionally, the device's USB interface may not support all USB device classes, so it's essential to check the datasheet and user manual for specific details on USB implementation.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPC43S67JBD208E Overview

Use the download button to access the LPC43S67JBD208E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPC43, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
