LPC54114J256UK49Z - NXP

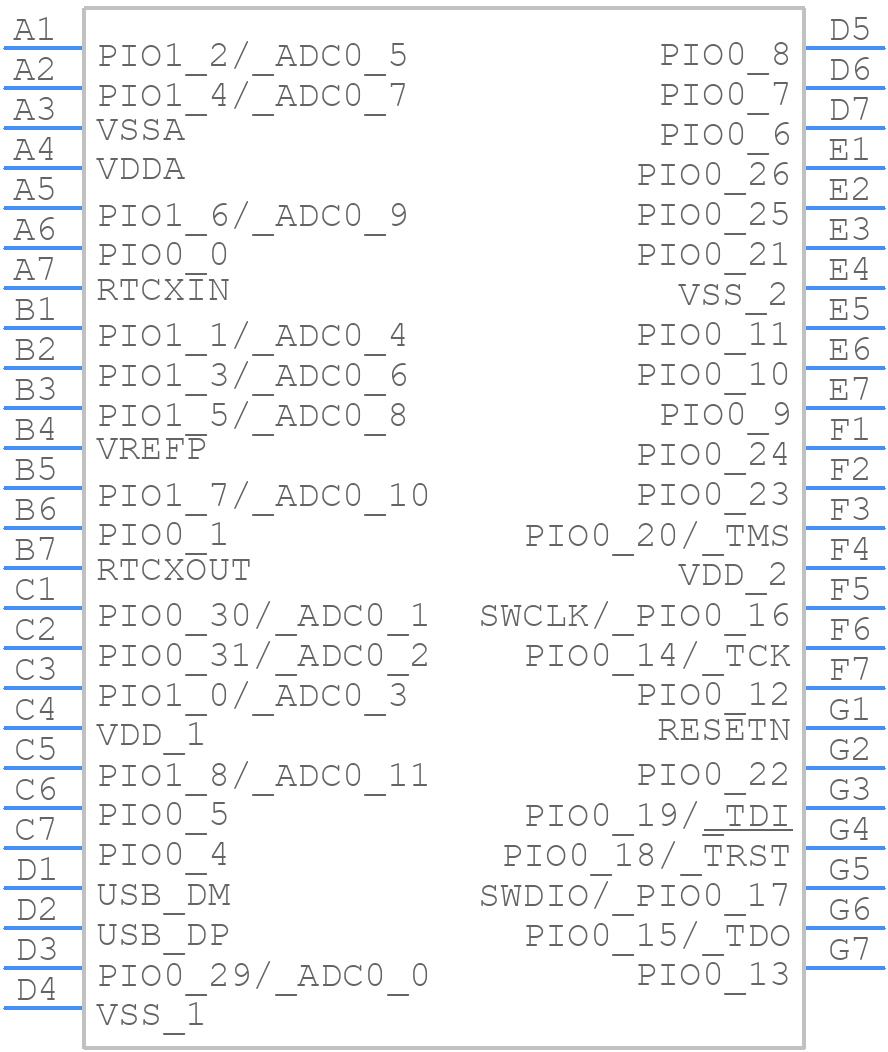

LPC54114J256UK49Z Details

• Manufacturer Part Number:

  LPC54114J256UK49Z

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  WLCSP-49

• Manufacturer Package Code:

  NAU000

• ECCN Code:

  EAR99

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  6

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M4/M0+

• Clock Frequency-Max:

  25 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FLOATING POINT

• Integrated Cache:

  NO

• JESD-30 Code:

  S-PBGA-B49

• Length:

  3.44 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  1

• Number of DMA Channels:

  20

• Number of External Interrupts:

  8

• Number of I/O Lines:

  37

• Number of Serial I/Os:

  8

• Number of Terminals:

  49

• Number of Timers:

  9

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA49,7X7,16

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  196608

• ROM (words):

  262144

• ROM Programmability:

  FLASH

• Seated Height-Max:

  0.565 mm

• Speed:

  100 MHz

• Supply Current-Max:

  60 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  1.62 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3.44 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
