LPC5514JBD100E - NXP

Description: ARM Microcontrollers - MCU High Efficiency Arm Cortex-M33-based Microcontroller

Download LPC5514JBD100E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LPC5514JBD100E - NXP - PCB symbol
click to zoom
PCB Footprints

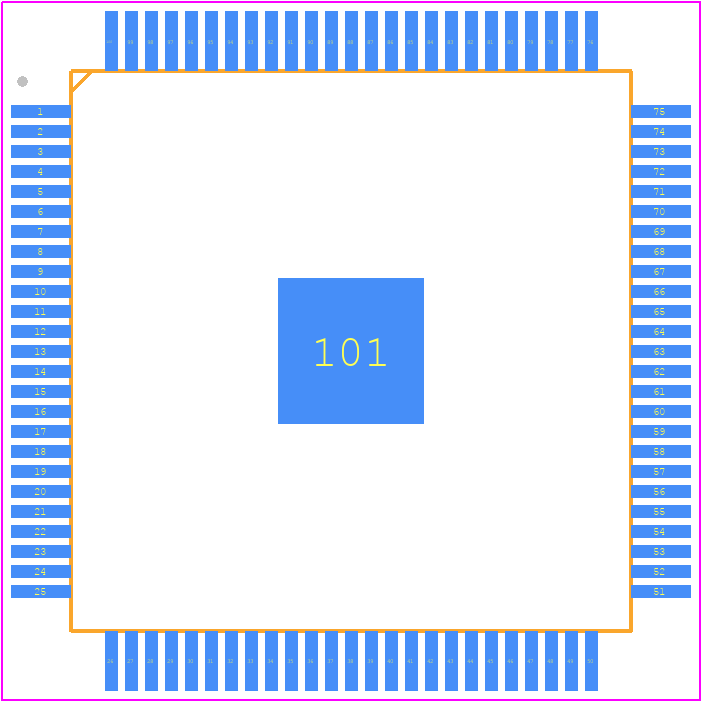

LPC5514JBD100E - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - SOT1570-3
click to zoom
3D Models
LPC5514JBD100E - NXP - 3D model - Quad Flat Packages - SOT1570-3
click to zoom

LPC5514JBD100E Details

  • Manufacturer Part Number:

    LPC5514JBD100E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.25

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    9

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    CORTEX-M33

  • Clock Frequency-Max:

    32 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • JESD-30 Code:

    S-PQFP-G100

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    64

  • Number of Terminals:

    100

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    81920

  • ROM (words):

    131072

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.6 mm

  • Speed:

    150 MHz

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

LPC5514JBD100E Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the LPC5514JBD100E is -40°C to 105°C.
  • The clock settings for the LPC5514JBD100E can be configured using the Clock Control Unit (CCU) registers. The CCU provides a flexible clock generation and distribution system that allows the user to configure the clock sources, dividers, and multiplexers to meet the specific requirements of the application.
  • The maximum current consumption of the LPC5514JBD100E depends on the operating frequency, voltage, and peripherals used. According to the datasheet, the typical current consumption at 100 MHz and 3.3V is around 120 mA. However, this value can vary depending on the specific application and usage.
  • The ADC on the LPC5514JBD100E is a 12-bit successive approximation register (SAR) ADC. To use the ADC, the user needs to configure the ADC clock, select the ADC channel, and set the ADC mode. The ADC can be triggered by a software command or an external event. The ADC conversion result can be read from the ADC result register.
  • Yes, the LPC5514JBD100E can be used with an external crystal oscillator. The microcontroller has an on-chip oscillator circuit that can be used with an external crystal or ceramic resonator. The external clock source can be connected to the XTALIN and XTALOUT pins.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPC5514JBD100E Overview

Use the download button to access the LPC5514JBD100E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPC55, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
