LPC802M001JDH20J - NXP

Description: MCU 32-bit ARM Cortex M0+ RISC 16KB Flash 3.3V 20-Pin TSSOP

Download LPC802M001JDH20J Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

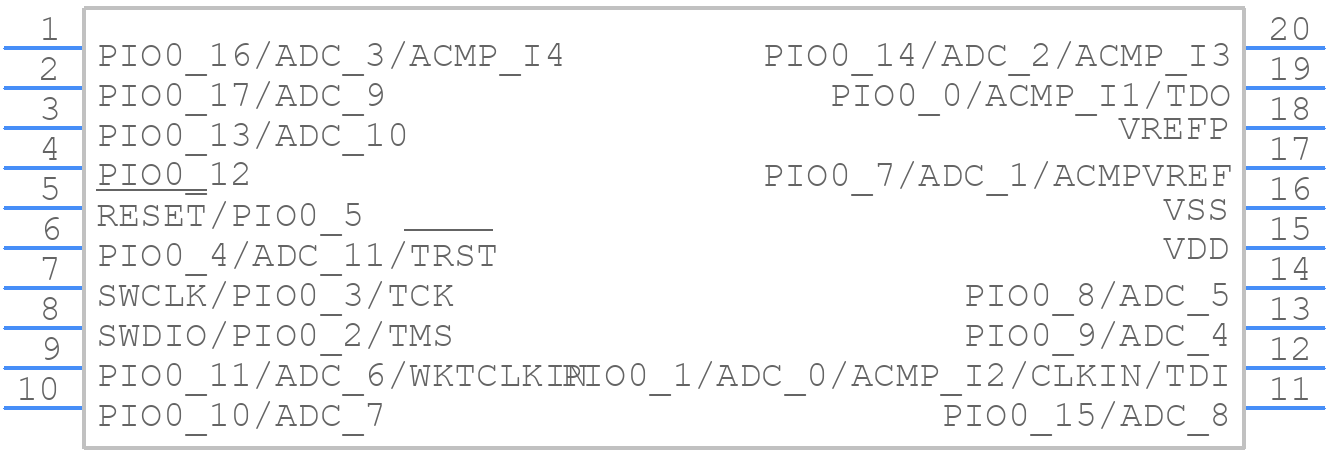

LPC802M001JDH20J - NXP - PCB symbol
click to zoom
PCB Footprints
LPC802M001JDH20J - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT360-1
click to zoom
3D Models
LPC802M001JDH20J - NXP - 3D model - Small Outline Packages - SOT360-1
click to zoom

LPC802M001JDH20J Details

  • Manufacturer Part Number:

    LPC802M001JDH20J

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPC802M001JDH20J Overview

Use the download button to access the LPC802M001JDH20J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPC80, or try a keyword search, such as Microcontrollers
