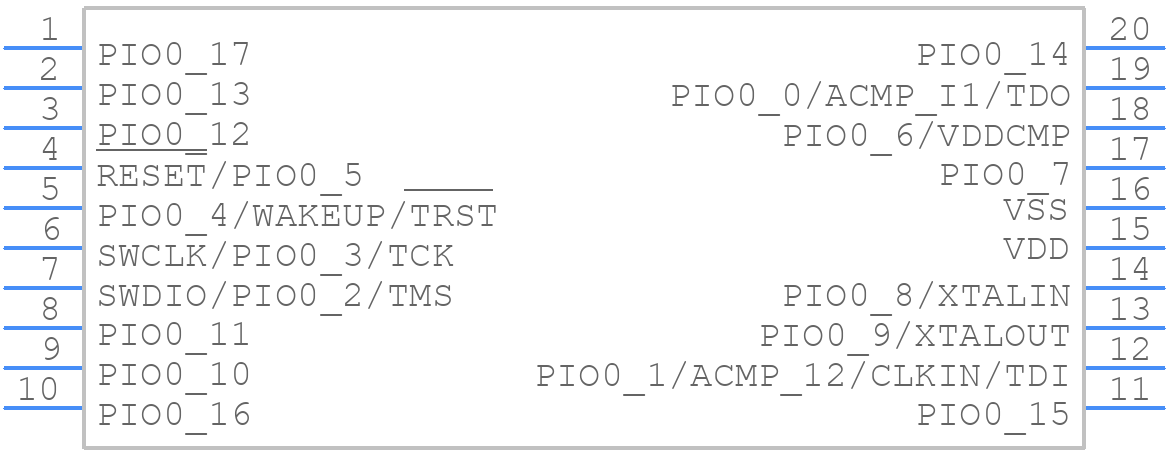

LPC812M101JD20J - NXP

LPC812M101JD20J Details

• Manufacturer Part Number:

  LPC812M101JD20J

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  SOP

• Package Description:

  7.50 MM, PLASTIC, MS-013, SOT163-1, SOP-20

• Pin Count:

  20

• Manufacturer Package Code:

  SOT163-1

• Country Of Origin:

  Thailand

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.25

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  5

• Has ADC:

  NO

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M0

• Clock Frequency-Max:

  25 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• JESD-30 Code:

  R-PDSO-G20

• Length:

  12.8 mm

• Moisture Sensitivity Level:

  1

• Number of I/O Lines:

  18

• Number of Terminals:

  20

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP20,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (bytes):

  4096

• ROM (words):

  16384

• ROM Programmability:

  FLASH

• Seated Height-Max:

  2.65 mm

• Speed:

  30 MHz

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
