LPC8N04FHI24E - NXP

Description: NXP - LPC8N04FHI24E - MCU, ARM CORTEX-M0+, 8MHZ, HVQFN-24

Download LPC8N04FHI24E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

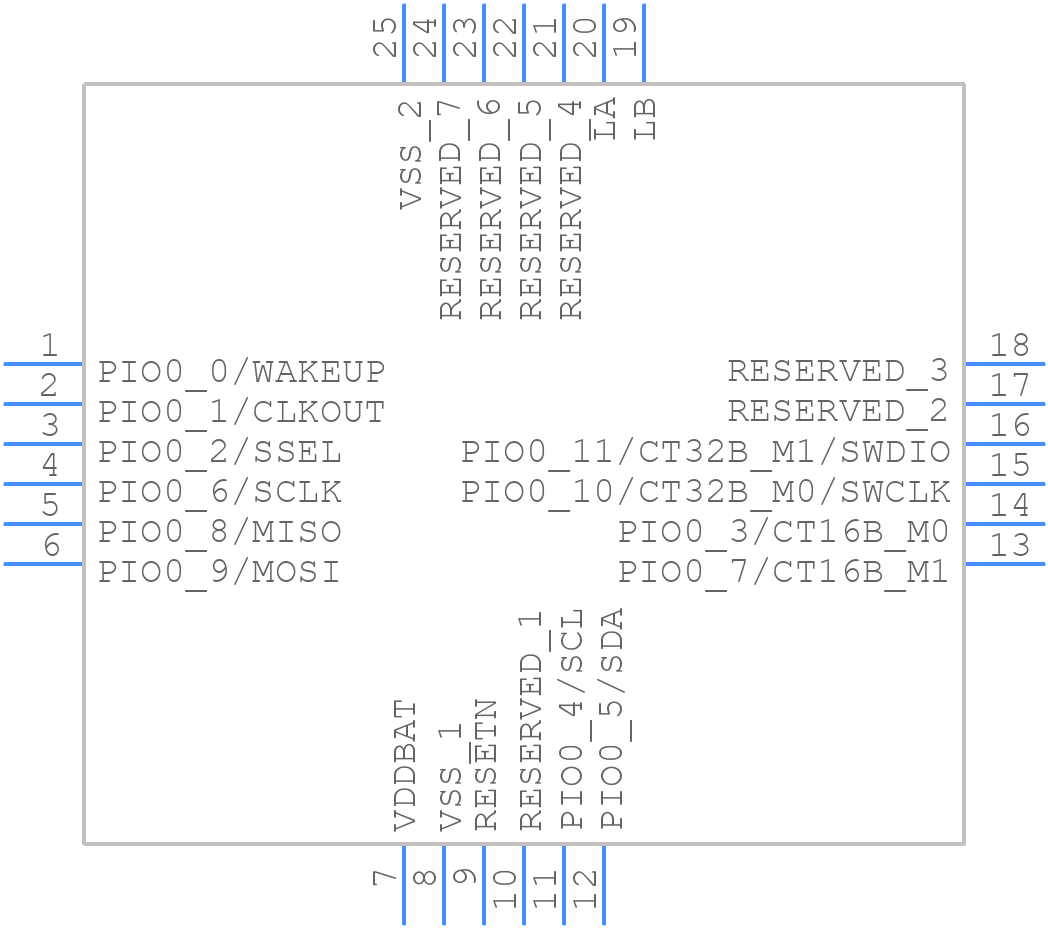

LPC8N04FHI24E - NXP - PCB symbol
click to zoom
PCB Footprints
LPC8N04FHI24E - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LPC8N04FHI24E
click to zoom
3D Models
LPC8N04FHI24E - NXP - 3D model - Quad Flat No-Lead - LPC8N04FHI24E
click to zoom

LPC8N04FHI24E Details

  • Manufacturer Part Number:

    LPC8N04FHI24E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

LPC8N04FHI24E Frequently Asked Questions (FAQs)

  • The LPC8N04FHI24E can operate at a maximum clock frequency of 32 MHz.
  • The LPC8N04FHI24E has 32 KB of flash memory.
  • Yes, the LPC8N04FHI24E is designed for low-power applications and has a low power consumption of 130 μA/MHz in active mode and 2.5 μA in sleep mode.
  • Yes, the LPC8N04FHI24E has 12-bit ADCs with up to 12 channels.
  • Yes, the LPC8N04FHI24E is rated for operation in industrial temperature ranges from -40°C to 105°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPC8N04FHI24E Overview

Use the download button to access the LPC8N04FHI24E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPC8N, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
