LPC8N04FHI24Z - NXP

Description: NXP - LPC8N04FHI24Z - MCU, 32BIT, 8MHZ, HVQFN-24

Download LPC8N04FHI24Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

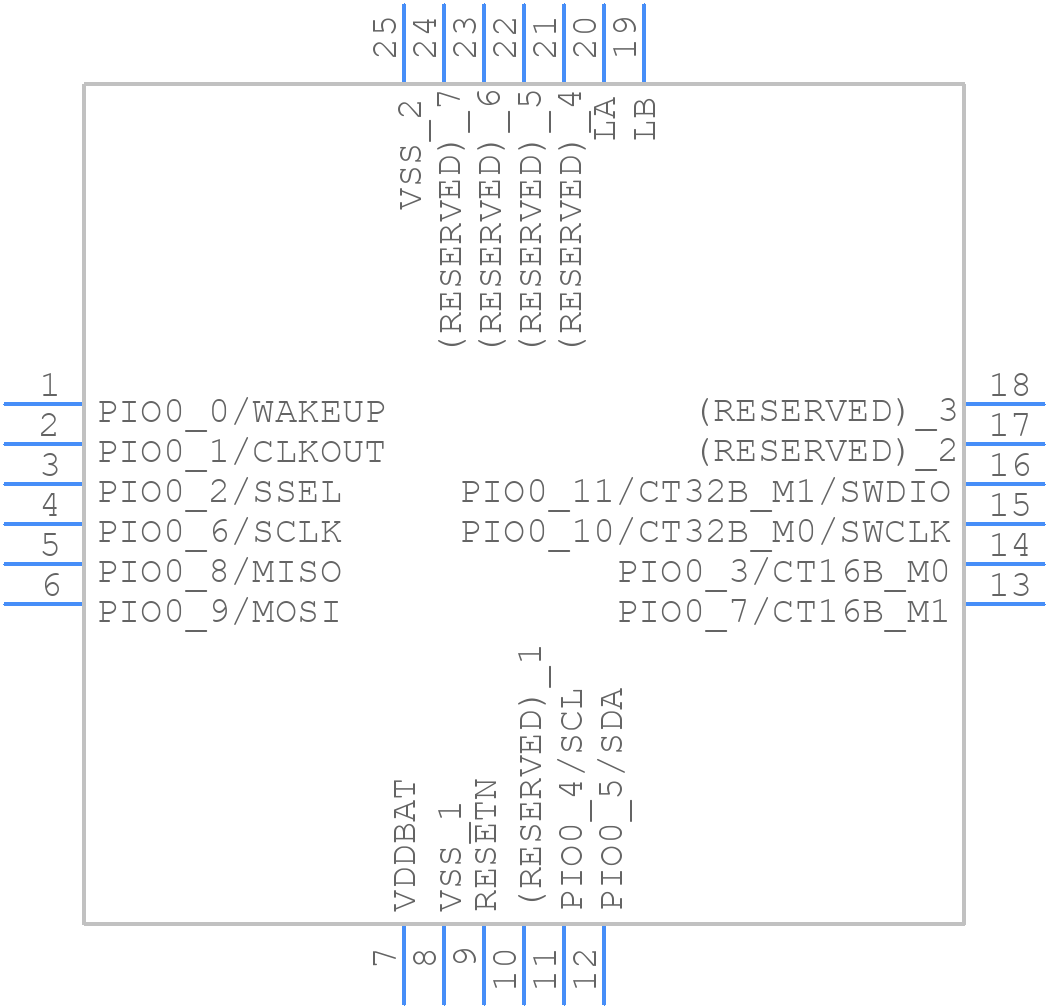

LPC8N04FHI24Z - NXP - PCB symbol
click to zoom
PCB Footprints
LPC8N04FHI24Z - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN24
click to zoom
3D Models
LPC8N04FHI24Z - NXP - 3D model - Quad Flat No-Lead - HVQFN24
click to zoom

LPC8N04FHI24Z Details

  • Manufacturer Part Number:

    LPC8N04FHI24Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC

LPC8N04FHI24Z Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the LPC8N04FHI24Z is 32 MHz.
  • The LPC8N04FHI24Z has 32 KB of flash memory.
  • Yes, the LPC8N04FHI24Z is suitable for battery-powered devices due to its low power consumption and sleep modes.
  • Yes, the LPC8N04FHI24Z has a built-in USB 2.0 full-speed device controller.
  • Yes, the LPC8N04FHI24Z can be used in industrial control applications due to its robustness, reliability, and ability to operate in a wide temperature range (-40°C to 105°C).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPC8N04FHI24Z Overview

Use the download button to access the LPC8N04FHI24Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPC8N, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
