Part Image

LPF-B0R3+ - Mini-Circuits

Description: Signal Conditioning Lumped LC Low Pass Filter, DC - 0.3 MHz, 50ohm

Download LPF-B0R3+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

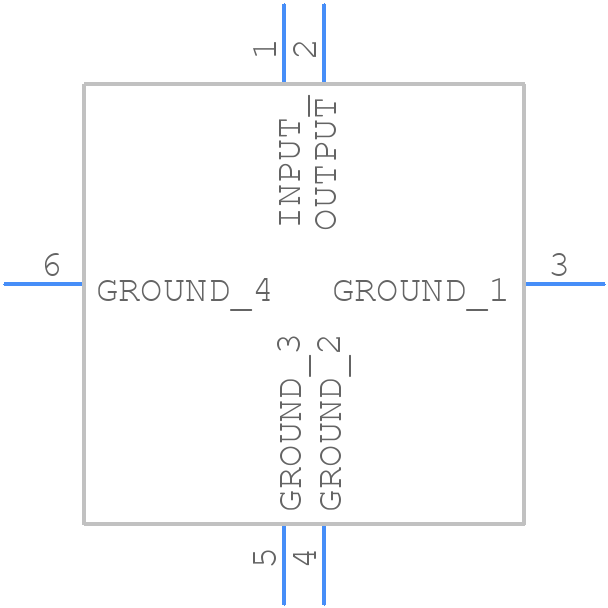

Symbol
LPF-B0R3+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
LPF-B0R3+ - Mini-Circuits PCB footprint - Other - Other - LPF-B0R3+-4
click to zoom
3D Models
LPF-B0R3+ - Mini-Circuits - 3D model - Other - LPF-B0R3+-4
click to zoom

LPF-B0R3+ Details

  • Manufacturer Part Number:

    LPF-B0R3+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.19

  • Attenuation Frequency-Max:

    1000 MHz

  • Attenuation Frequency-Min:

    0.56 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.25 W

  • Center or Cutoff Frequency (fo/fc):

    0.46 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    5.59 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.5 dB

  • Length:

    20.98 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.1

  • Width:

    11.99 mm

LPF-B0R3+ Frequently Asked Questions (FAQs)

  • The maximum power handling of LPF-B0R3+ is 1W. Exceeding this limit may cause damage to the device.
  • The operating temperature range of LPF-B0R3+ is -40°C to +85°C. While it can tolerate high temperatures, it's not recommended to operate it above 70°C for extended periods to ensure reliability.
  • The input and output impedances of LPF-B0R3+ are 50 ohms. You can use impedance matching networks or transformers to match the filter to your system. Consult the datasheet for more information.
  • Yes, LPF-B0R3+ is a RoHS-compliant device, meaning it meets the EU's Restriction of Hazardous Substances directive.
  • LPF-B0R3+ has a compact size of 0.25 x 0.5 inches. It's suitable for space-constrained designs, but ensure proper thermal management and clearance from other components.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPF-B0R3+ Overview

Use the download button to access the LPF-B0R3+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPF-B, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
