LPF-B0R8+ - Mini-Circuits

Description: Signal Conditioning Lumped LC Low Pass Filter, DC - 0.8 MHz, 50ohm

Download LPF-B0R8+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

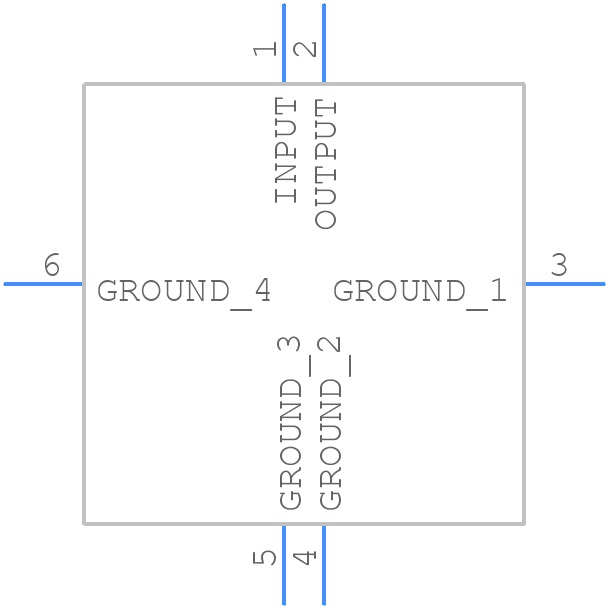

Symbol
LPF-B0R8+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
LPF-B0R8+ - Mini-Circuits PCB footprint - Other - Other - HZ1198_2024-2
click to zoom
3D Models
LPF-B0R8+ - Mini-Circuits - 3D model - Other - HZ1198_2024-2
click to zoom

LPF-B0R8+ Details

  • Manufacturer Part Number:

    LPF-B0R8+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.19

  • Attenuation Frequency-Max:

    1000 MHz

  • Attenuation Frequency-Min:

    1.55 MHz

  • Attenuation@Freq-Max:

    40 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.25 W

  • Center or Cutoff Frequency (fo/fc):

    1.25 MHz

  • Filter Type:

    LOW PASS FILTER

  • Height:

    5.59 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.5 dB

  • Length:

    20.98 mm

  • Mounting Type:

    SURFACE MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.1

  • Width:

    11.99 mm

LPF-B0R8+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 50-ohm microstrip line with a width of 0.5mm to 1.5mm, and a length of 10mm to 20mm, to ensure optimal performance and minimize signal loss.
  • While the LPF-B0R8+ is rated for operation up to 85°C, it's recommended to derate the power handling by 1 dB for every 10°C above 70°C to ensure reliability and prevent thermal damage.
  • Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Ensure the component is properly aligned and the solder joints are smooth and shiny.
  • The typical lead time for LPF-B0R8+ is 2-4 weeks, but this may vary depending on the quantity and availability. It's recommended to check with Mini-Circuits or an authorized distributor for the most up-to-date lead time information.
  • While the LPF-B0R8+ is designed to operate in a variety of environments, it's recommended to take precautions to prevent moisture ingress. Apply a conformal coating or use a sealed enclosure to protect the device from humidity and moisture.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPF-B0R8+ Overview

Use the download button to access the LPF-B0R8+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPF-B, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
