LPHS-04-16-L-VP1-GP - SAMTEC

Description: 20 Connector Socket, Outer Shroud Contacts Through Hole Black LPHPower

Download LPHS-04-16-L-VP1-GP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

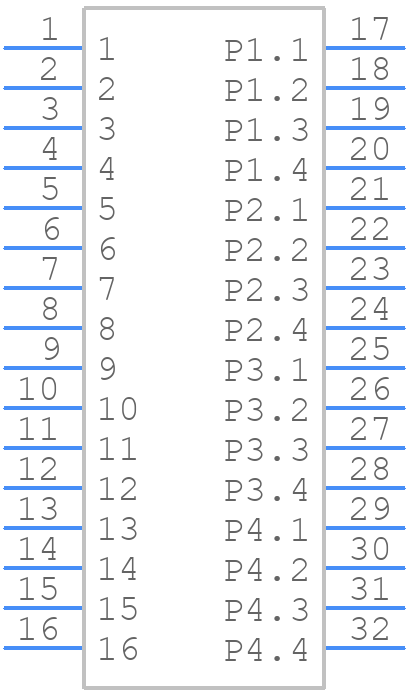

LPHS-04-16-L-VP1-GP - SAMTEC - PCB symbol
click to zoom
PCB Footprints

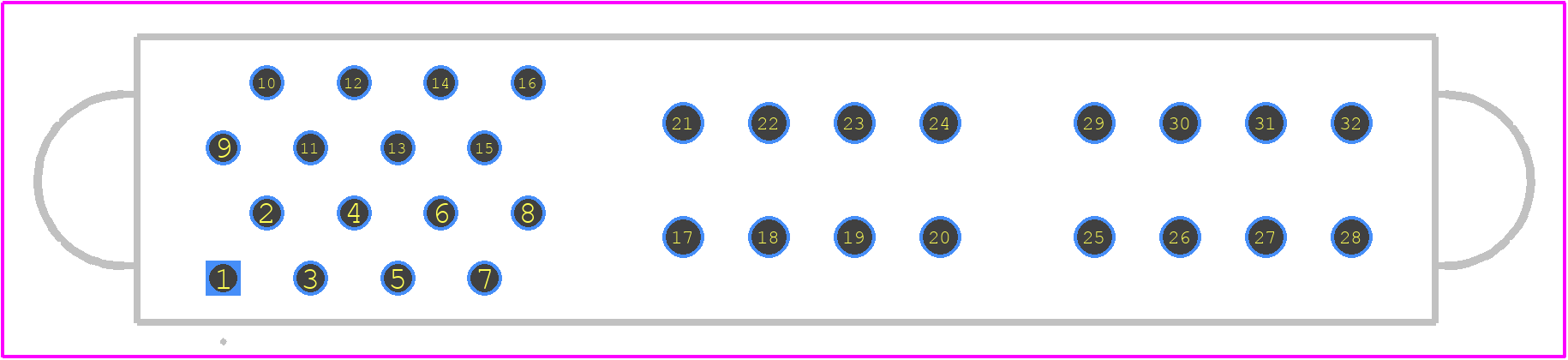

LPHS-04-16-L-VP1-GP - SAMTEC PCB footprint - Other - Other - LPHS-04-16-L-VP1-GP-5
click to zoom
3D Models
LPHS-04-16-L-VP1-GP - SAMTEC - 3D model - Other - LPHS-04-16-L-VP1-GP-5
click to zoom

LPHS-04-16-L-VP1-GP Details

  • Manufacturer Part Number:

    LPHS-04-16-L-VP1-GP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 4 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

LPHS-04-16-L-VP1-GP Frequently Asked Questions (FAQs)

  • The recommended mating sequence for LPHS-04-16-L-VP1-GP is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
  • Yes, the LPHS-04-16-L-VP1-GP is designed to withstand high-vibration environments. The connector's rugged design and secure locking mechanism ensure reliable connections even in harsh conditions.
  • The LPHS-04-16-L-VP1-GP has an operating temperature range of -55°C to 125°C, making it suitable for use in high-temperature applications. However, it's essential to ensure that the connector is properly derated for high-temperature use to prevent damage.
  • The LPHS-04-16-L-VP1-GP has a standard mating height of 16mm, but Samtec offers variations with different mating heights. It's essential to check the datasheet or consult with Samtec's technical support to ensure compatibility with your specific application.
  • Yes, the LPHS-04-16-L-VP1-GP is RoHS and REACH compliant, making it suitable for use in applications that require environmental compliance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPHS-04-16-L-VP1-GP Overview

Use the download button to access the LPHS-04-16-L-VP1-GP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPHS-, or try a keyword search, such as Power Connectors
