LPJ4112CNL - LINK-PP

Description: Telecom and Datacom Connector, 8Contact(s),Female,Right Angle, Solder Terminal

Download LPJ4112CNL Model

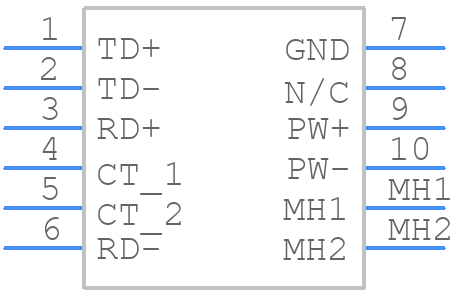

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

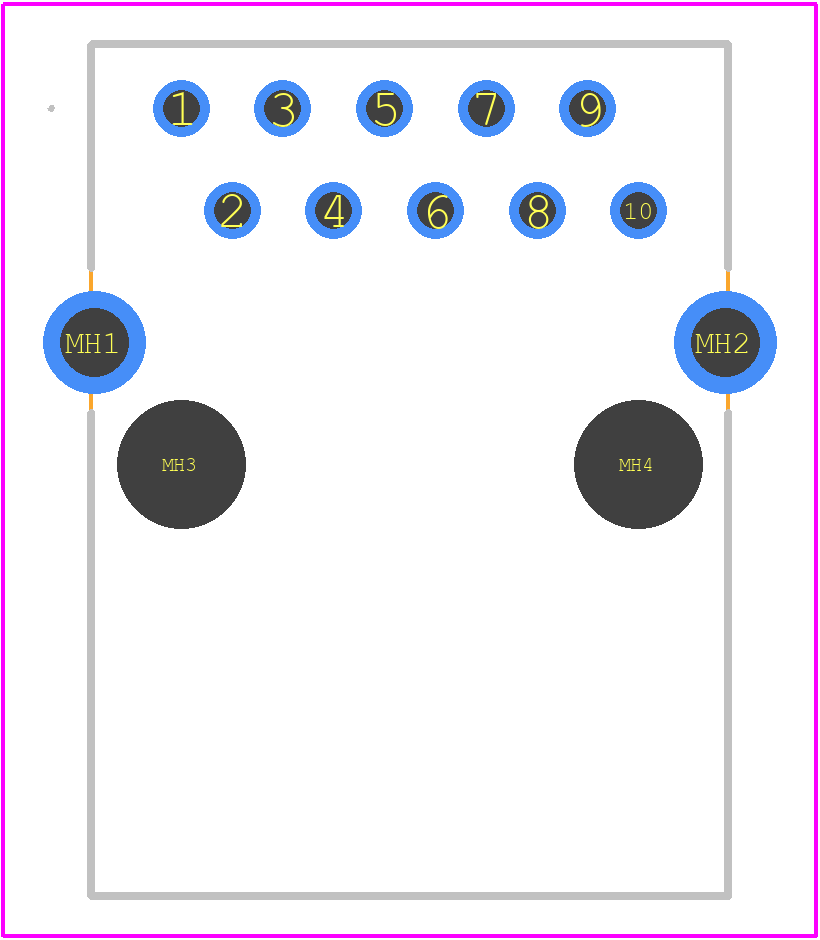

LPJ4112CNL - LINK-PP PCB footprint - Other - Other - LPJ4112CNL-2
click to zoom
3D Models
LPJ4112CNL - LINK-PP  - 3D model - Other - LPJ4112CNL-2
click to zoom

LPJ4112CNL Details

  • Manufacturer Part Number:

    LPJ4112CNL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Link-PP Int'L Technology Co Ltd

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.528 inch

  • Body Depth:

    0.839 inch

  • Body Length:

    0.626 inch

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    2.54 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

LPJ4112CNL Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and EMI.
  • Use a thermal pad or thermal vias to dissipate heat from the device. Ensure good airflow and avoid thermal hotspots. Follow the recommended operating conditions and derating guidelines.
  • The maximum allowable voltage on the input pins is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V ± 10% to ensure reliable operation.
  • The LPJ4112CNL is not designed for high-humidity environments. If you need to operate the device in a humid environment, consider using a moisture-resistant coating or conformal coating to protect the device.
  • Use a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection device on the input pins to protect the device from electrostatic discharge.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LPJ4112CNL Overview

Use the download button to access the LPJ4112CNL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPJ41, or try a keyword search, such as Telecom and Datacom Connectors
