The recommended operating temperature range for the LPJD4709BENL is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range for extended periods.
To ensure proper soldering, follow the recommended soldering profile and temperature guidelines provided in the datasheet. Additionally, use a solder with a melting point below 260°C, and avoid applying excessive force or pressure during the soldering process.
The maximum current rating for the LPJD4709BENL is 1A per channel, as specified in the datasheet. However, it's crucial to consider the device's power dissipation and thermal management when designing the system to ensure reliable operation.
While the LPJD4709BENL is designed to be robust, it's essential to consider the device's mechanical stress limits and vibration tolerance when designing the system. It's recommended to consult with the manufacturer or a qualified engineer to ensure the device can withstand the expected vibration levels.
To troubleshoot issues with the LPJD4709BENL, start by consulting the datasheet and application notes. Check for proper power supply, signal integrity, and correct pin connections. If the issue persists, contact the manufacturer's technical support or a qualified engineer for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LPJD4709BENL Overview

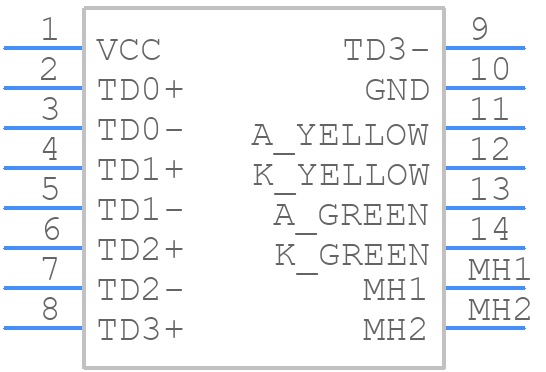

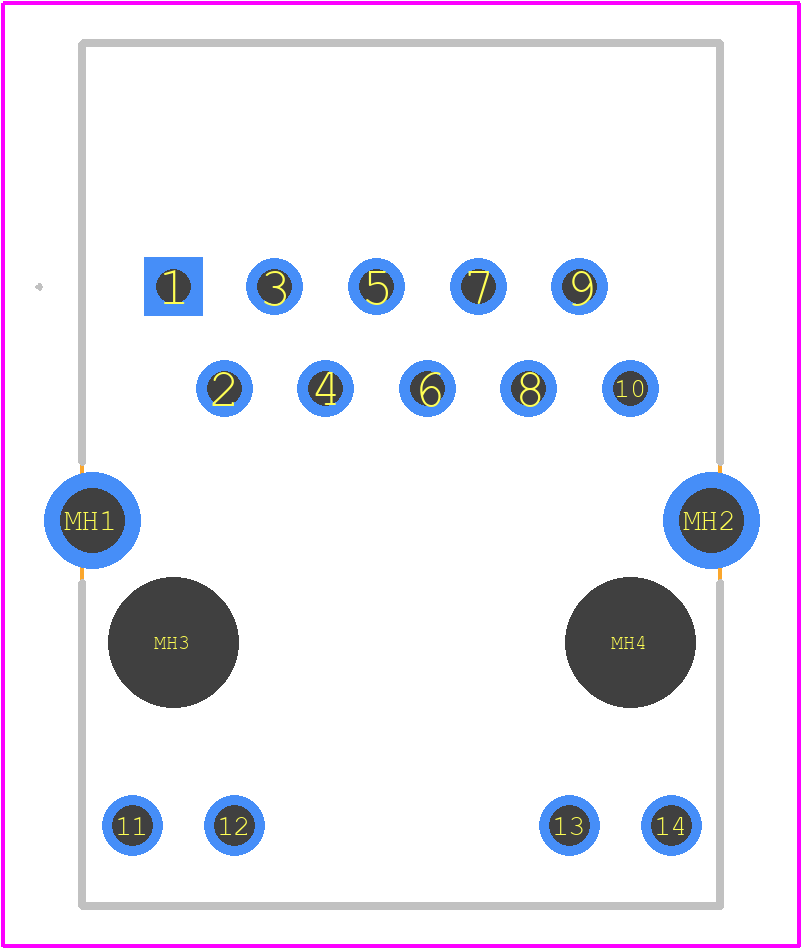

Use the download button to access the LPJD4709BENL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPJD4,
or try a keyword search, such as Telecom and Datacom Connectors
