LPJG0801GENL - LINK-PP

Description: Telecom and Datacom Connector, 8Contact(s),Female,Right Angle, Solder Terminal

Download LPJG0801GENL Model

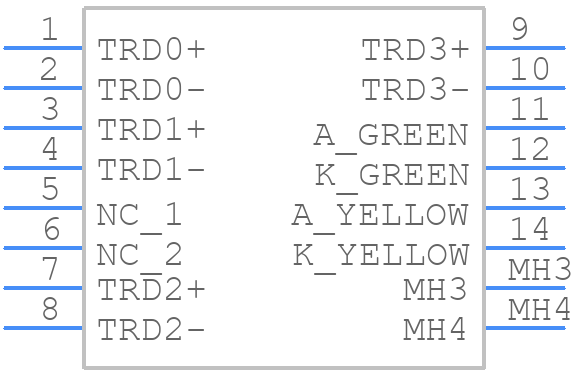

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

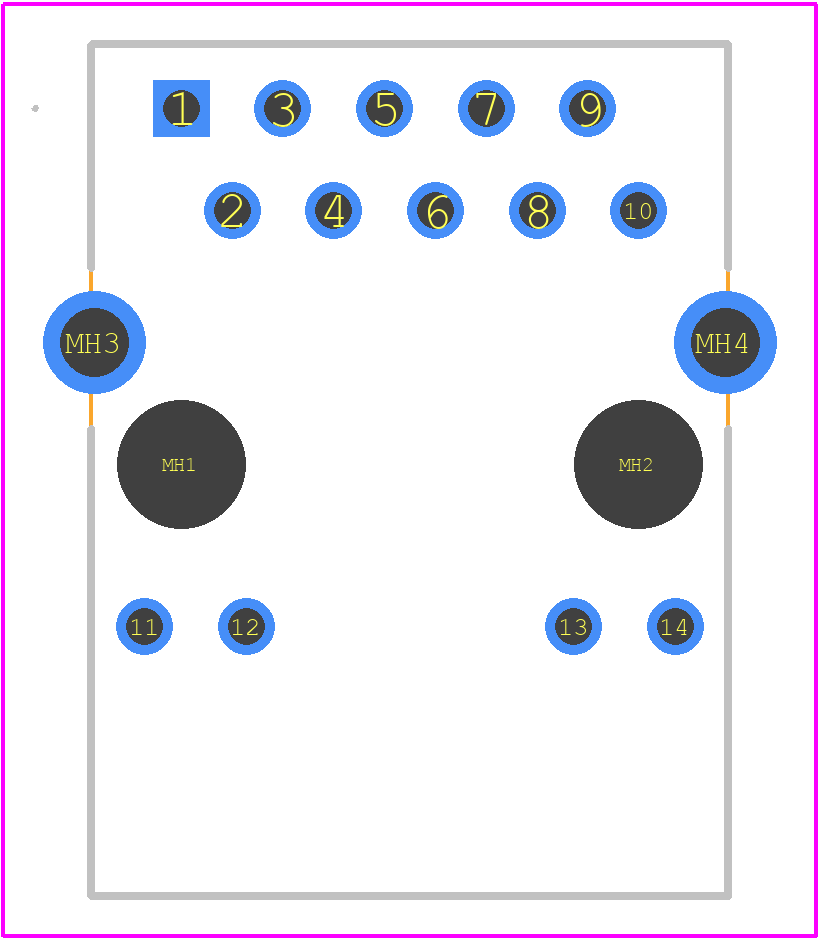

PCB Footprints
LPJG0801GENL - LINK-PP PCB footprint - Other - Other - LPJG0801GENL-1
click to zoom
3D Models
LPJG0801GENL - LINK-PP  - 3D model - Other - LPJG0801GENL-1
click to zoom

LPJG0801GENL Details

  • Manufacturer Part Number:

    LPJG0801GENL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Link-PP Int'L Technology Co Ltd

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.528 inch

  • Body Depth:

    0.839 inch

  • Body Length:

    0.626 inch

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    3

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    MIXED

  • Polarization Key:

    POLARIZED HOUSING

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0
