- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LPJG0926HENL
- Part Number LPJG0926HENL
- Manufacturer LINK-PP
- Pin Count 20
- Part Category Connector
- Package Category Other
- Footprint Name Other - LPJG0926HENL-3
- Released Date Oct 24, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LPJG0926HENL Details
-
Manufacturer Part Number:
LPJG0926HENL
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
ROHS COMPLIANT
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Manufacturer:
Link-PP Int'L Technology Co Ltd
-
Additional Feature:
SHIELDED
-
Board Mounting Option:
PEG
-
Body Breadth:
0.528 inch
-
Body Depth:
0.839 inch
LPJG0926HENL Frequently Asked Questions (FAQs)
-
The recommended storage condition for LPJG0926HENL is in a dry, cool place with a temperature range of -20°C to 40°C and humidity below 60%.
-
Yes, LPJG0926HENL is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure optimal performance.
-
Yes, LPJG0926HENL is compatible with lead-free soldering processes, but it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure optimal performance.
-
The typical lead time for LPJG0926HENL varies depending on the quantity and availability, but it's usually around 4-6 weeks. It's recommended to check with the manufacturer or authorized distributor for the most up-to-date lead time information.
-
Yes, LPJG0926HENL is designed for outdoor applications, but it's recommended to follow the manufacturer's guidelines for environmental protection and to ensure that the device is properly sealed and protected from moisture and other environmental factors.
Trust Checks
Community Provided
System Verified
Community Approved
LPJG0926HENL Overview

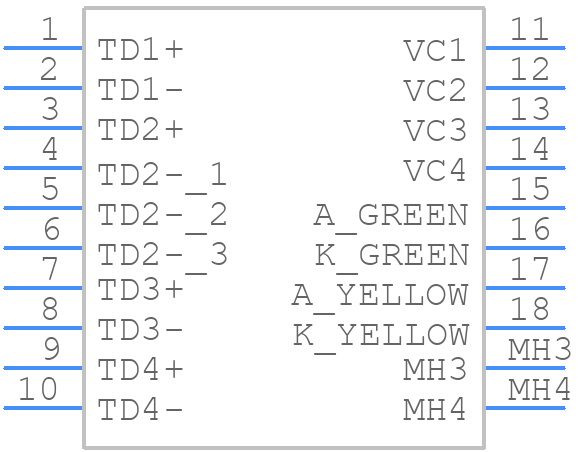

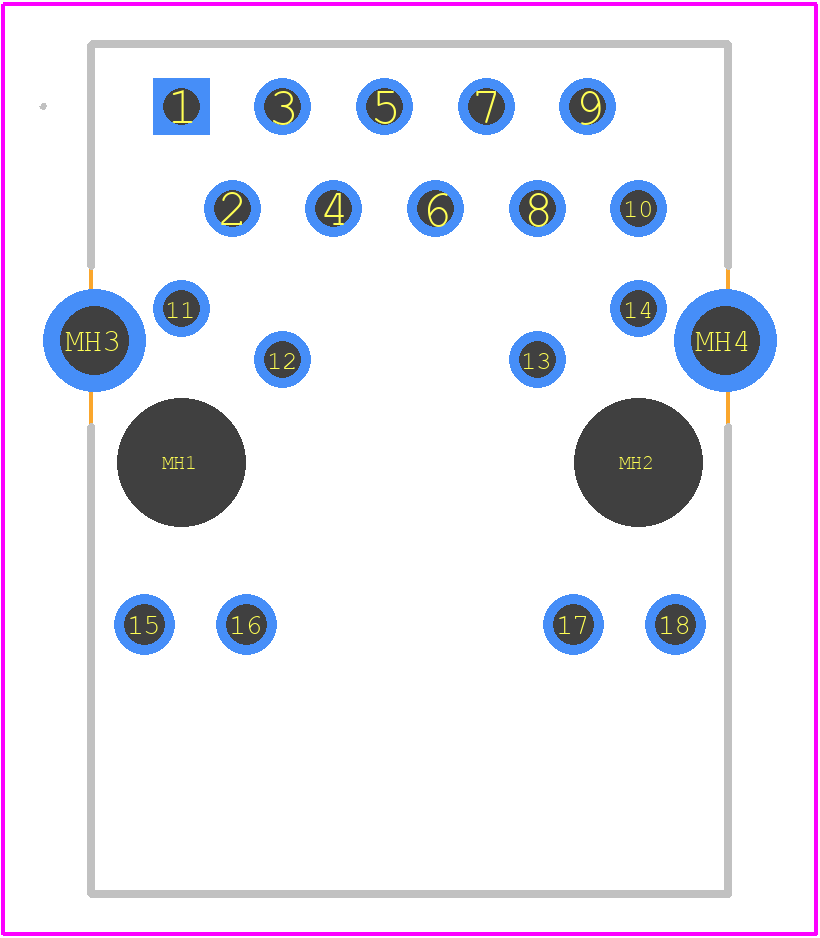

Use the download button to access the LPJG0926HENL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPJG0,
or try a keyword search, such as Telecom and Datacom Connectors
