LPJK6064AONL - LINK-PP

Description: RJ45 Connector with 1000 Base-T Integrated Magnetics

Download LPJK6064AONL Model

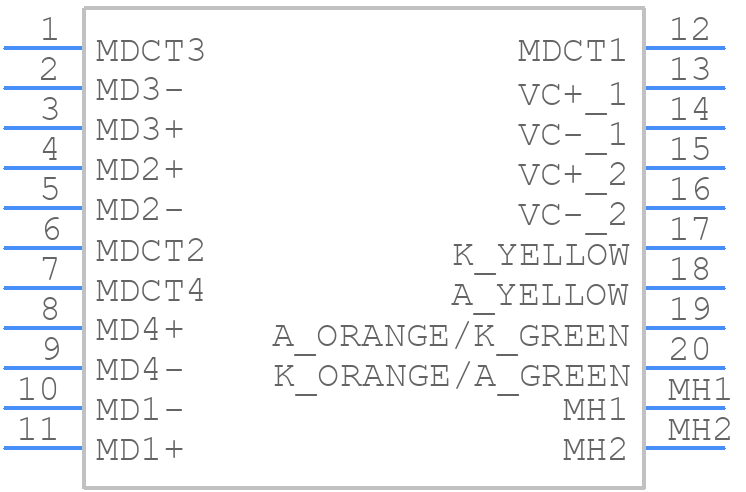

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

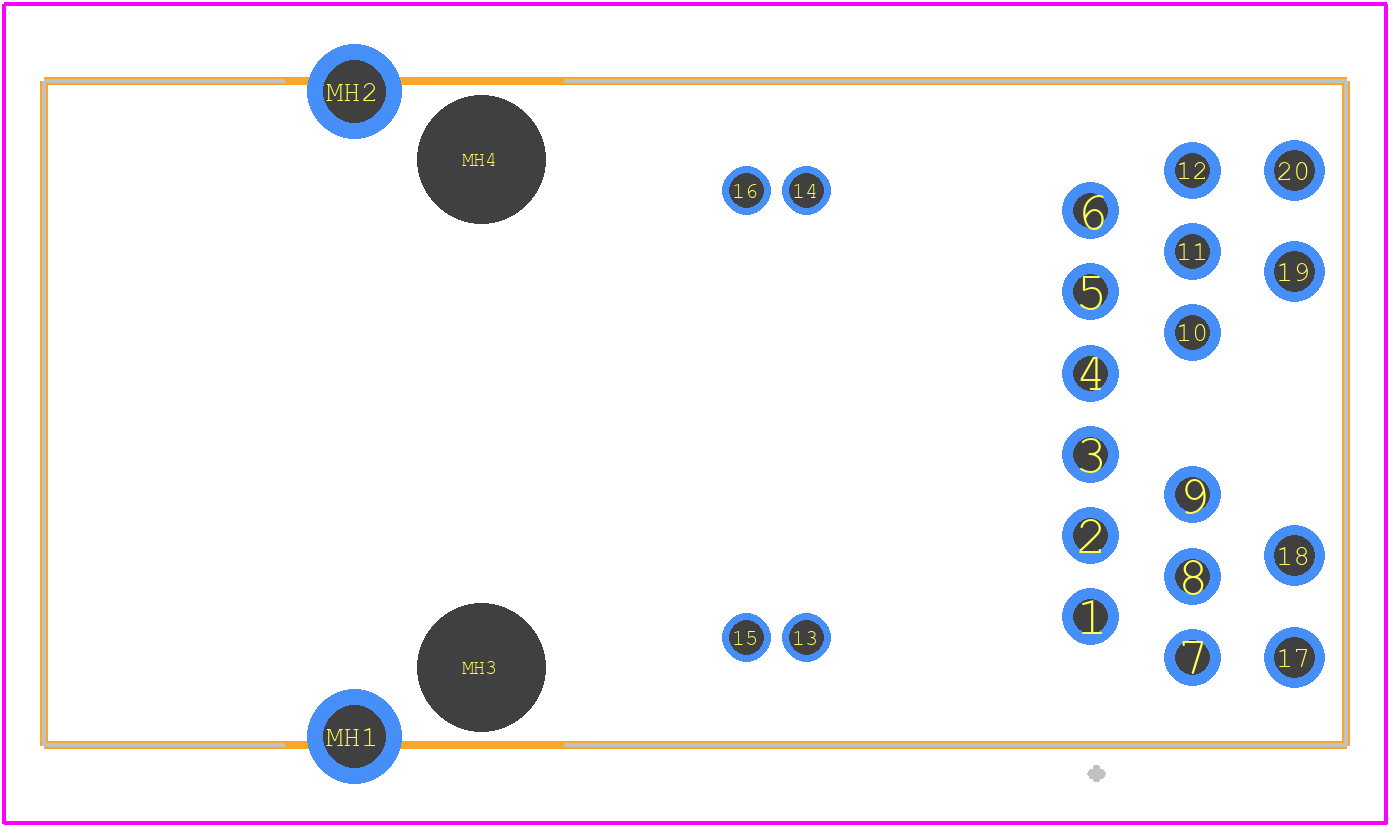

LPJK6064AONL - LINK-PP PCB footprint - Other - Other - LPJK6064AONL-3
click to zoom
3D Models
LPJK6064AONL - LINK-PP  - 3D model - Other - LPJK6064AONL-3
click to zoom

LPJK6064AONL Details

  • Manufacturer Part Number:

    LPJK6064AONL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Link-PP Int'L Technology Co Ltd

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.531 inch

  • Body Depth:

    1.3 inch

  • Body Length:

    0.654 inch

  • Connector Type:

    RJ CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    TELCOM, MODULAR

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    YES

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE/POLYETHYLENE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of PCB Rows:

    5

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    MIXED

  • Polarization Key:

    POLARIZED HOUSING

  • Shell Material:

    COPPER ALLOY

  • Terminal Pitch:

    2.04 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • UL Flammability Code:

    94V-0

LPJK6064AONL Frequently Asked Questions (FAQs)

  • The recommended PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal traces as short and wide as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating temperature range, provide adequate heat sinking, and ensure good airflow around the device. Additionally, consider using thermal interface materials and conformal coatings to enhance thermal performance.
  • The recommended soldering conditions for the LPJK6064AONL are: peak temperature of 260°C, soldering time of 10-15 seconds, and a soldering iron temperature of 350-370°C. It's also recommended to use a solder with a melting point of 217-220°C.
  • To troubleshoot issues with the device's output voltage regulation, check the input voltage, output load, and feedback resistors. Ensure that the input voltage is within the recommended range, the output load is within the specified current limit, and the feedback resistors are correctly configured. Also, verify that the device is properly soldered and that there are no signs of overheating.
  • The LPJK6064AONL has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging materials. Additionally, ensure that the device is stored in a dry, cool environment, away from direct sunlight and moisture.
