The recommended PCB layout and land pattern can be found in the manufacturer's application note or layout guide, which is usually available upon request. It's essential to follow the recommended layout to ensure proper thermal management and signal integrity.
The LPJK7003B98NL has a thermal pad on the bottom, which should be connected to a thermal plane on the PCB to dissipate heat efficiently. A thermal interface material (TIM) can be used to improve heat transfer between the component and the PCB. Additionally, ensure good airflow around the component and consider using a heat sink if necessary.
While the datasheet specifies the storage temperature range, the maximum operating temperature range may not be explicitly stated. Typically, the operating temperature range for this component is -40°C to 125°C, but it's recommended to consult with the manufacturer or a reliable source for specific information.
Yes, the LPJK7003B98NL is a sensitive component and requires proper ESD protection during handling, storage, and assembly. Follow standard ESD protection procedures, such as using anti-static wrist straps, mats, and packaging materials, to prevent damage to the component.
The LPJK7003B98NL is designed for general-purpose applications, but its suitability for high-vibration or high-shock environments depends on the specific use case. Consult with the manufacturer or a reliable source to determine if the component meets the required mechanical stress specifications for your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LPJK7003B98NL Overview

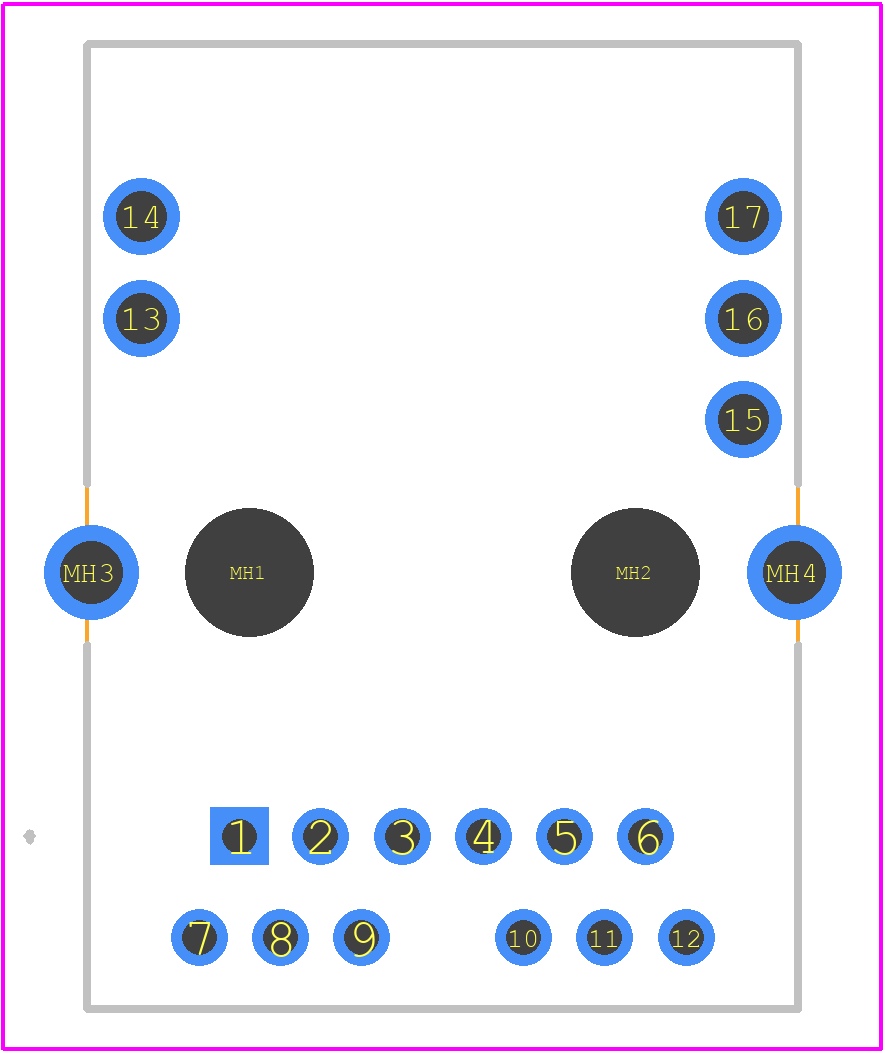

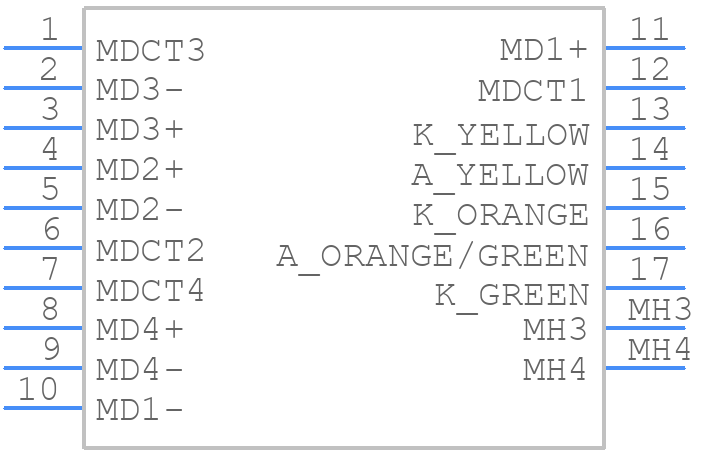

Use the download button to access the LPJK7003B98NL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPJK7,
or try a keyword search, such as Telecom and Datacom Connectors
