LPR4150AL - STMicroelectronics

Description: LPR4150AL, Accelerometer, 28-Pin PLGA

Download LPR4150AL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

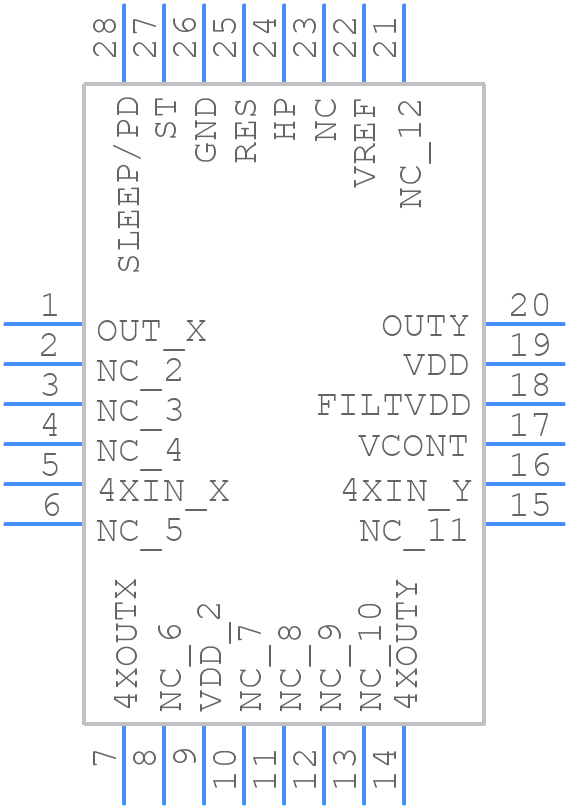

LPR4150AL - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LPR4150AL - STMicroelectronics PCB footprint - Other - Other - LGA28R50P8X6_500X400X100
click to zoom
3D Models
LPR4150AL - STMicroelectronics - 3D model - Other - LGA28R50P8X6_500X400X100
click to zoom

LPR4150AL Details

  • Manufacturer Part Number:

    LPR4150AL

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    LGA

  • Package Description:

    4 X 5 MM, 1 MM HEIGHT, GREEN, PLASTIC, LGA-28

  • Pin Count:

    28

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PBGA-B28

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Equivalence Code:

    LCC28,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL GOLD

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LPR4150AL Frequently Asked Questions (FAQs)

  • A good PCB layout for the LPR4150AL involves keeping the input and output tracks separate, using a solid ground plane, and minimizing track lengths and widths to reduce electromagnetic interference (EMI).
  • To ensure proper powering and decoupling, use a low-ESR capacitor (e.g., 10uF) between VIN and GND, and a 100nF capacitor between VOUT and GND. Also, ensure the input voltage is within the recommended range (2.5V to 5.5V).
  • The LPR4150AL can deliver up to 1.5A of output current, but this may vary depending on the input voltage, output voltage, and ambient temperature. Always check the datasheet for specific conditions.
  • The output voltage of the LPR4150AL can be adjusted by connecting a resistor divider network between the VOUT pin and the ADJ pin. The output voltage is calculated using the formula: VOUT = 1.25V x (1 + R1/R2).
  • The LPR4150AL has a built-in thermal shutdown feature that activates when the junction temperature exceeds 150°C. The device will automatically restart when the temperature drops below 130°C.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

LPR4150AL Overview

Use the download button to access the LPR4150AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LPR41, or try a keyword search, such as Other Signal Circuits
